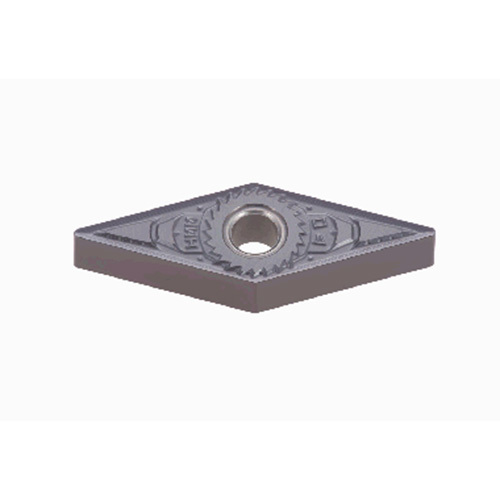

VNMG 333 HMM AH905
Turning Insert; VNMG333HMM AH905 ; 0.654″ Length ; 3/8″ IC ; 0.047″ Corner Radius ; Carbide ; Neutral ; AlTiN
| Applicable Material | | Super-Alloys / Titanium | | Tool Type | Turn Negative Inserts |
| Application | | Inserts | | Min D.O.C. | 0.0196″ |
| Corner Radius (RE) | 0.0472″ | Depth of Cut Maximum (APMX) | 0.1181″ |
| Cutting Edge Length (L) | 0.654″ | Min. Turning Feed (ft(min)) | 0.0039 ″/rev |
| Insert Thickness (S) | 0.187″ | Max. Turning Feed (ft(max)) | 0.0118 ″/rev |
| Inscribed Circle Diameter (IC) | 3/8″ | Cutting Direction (HAND) | Neutral |
| Cutting Edge Material | Carbide | Chip Breaker Type | HMM |
| Coating | AlTiN | Measurement Type | Inch |
| Grade | AH905 | Body Material | Carbide |
| Fixing Hole Diameter (D1) | 0.15″ |
Product Features
| Family Description | Negative relief ang., M class, 35deg rhombic insert, for medium cutting of super alloy | Country of Origin | Japan |
Shipping Info
Package Weight
0.027
