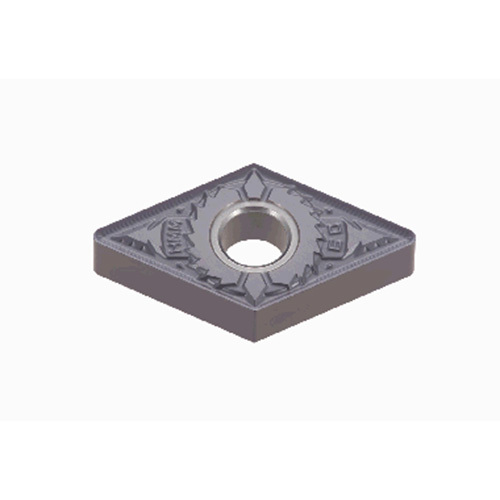

DNMG431HMM AH905 TURNING
Turning Insert; DNMG431HMM AH905 ; 0.61″ Length ; 1/2″ IC ; 0.016″ Corner Radius ; Carbide ; Neutral ; AlTiN
| Applicable Material | | Super-Alloys / Titanium | | Tool Type | Turn Negative Inserts |
| Application | | Inserts | | Min D.O.C. | 0.5 mm |
| Corner Radius (RE) | 0.4 mm | Depth of Cut Maximum (APMX) | 3 mm |
| Cutting Edge Length (L) | 15.5 mm | Min. Turning Feed (ft(min)) | 0.1 mm/rev |
| Insert Thickness (S) | 4.76 mm | Max. Turning Feed (ft(max)) | 0.3 mm/rev |
| Inscribed Circle Diameter (IC) | 12.7 mm | Cutting Direction (HAND) | Neutral |
| Cutting Edge Material | Carbide | Chip Breaker Type | HMM |
| Coating | AlTiN | Measurement Type | Metric |
| Grade | AH905 | Body Material | Carbide |
| Fixing Hole Diameter (D1) | 5.16 mm |
Product Features
| Family Description | Negative relief ang., M class, 55deg rhombic insert, for medium cutting of super alloy | Country of Origin | Japan |
