‎3500XL 3/4X2-1/4X5 R.03

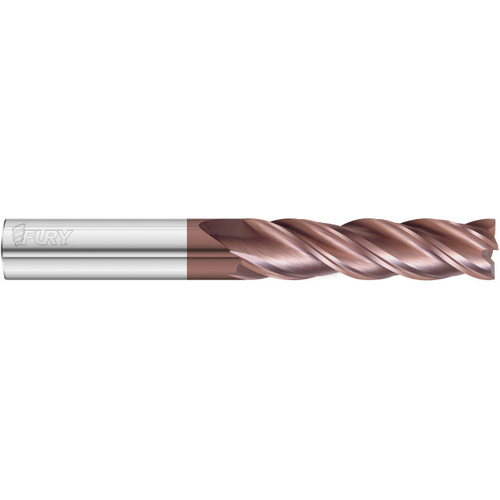

‎SQ End Mill; 3/4″ Dia. × 2-1/4″ LOC × 3/4″ Shank Dia. × 5″ OAL ; 0.03″ RE ; 4 FL ; 2-1/4″ LBS ; Carbide ; FC20 ; Series 3500

Item # FT8535258

Brand: Fullerton Tool

MFG #: 35258

Legacy Part #: FT8535258

TradeName: 3500 Fury End Mill

Quantity Available

Cutting Diameter (DC)

3/4″

End Shape

Corner Radius

Connection Diameter Machine Side (DCONMS)

3/4″

Usable Length (LU)

‎2-1/4″

Depth of Cut Maximum (APMX)

‎2-1/4″

Corner Radius (RE)

0.03″

Overall Length (OAL)

5″

Tool Type

Single-End

Cutting Edge Material

Carbide

Length Group

Extra Long

Coating

FC20

Coolant Supply Property (CSP)

External

Flute Count (NOF)

Decimal Equivalent

0.75″

Flute Helix Angle (FHA)

Variable

Series/List #

3500

Shank Type

Round

Product Features

Remarks

Advanced Performance

4 Flute

Corner Radius or Ball Nose

4 Flutes

Variable Helix
Variable Index
Right Hand Spiral
Right Hand Cut

Center Cutting

Stub, Standard, Extra Long Length

Standard FC-20 Coating

Inch and Metric Based Tools

Dura Carb (Micrograin)

Country of Origin

USA

Shipping Info

Package Weight
