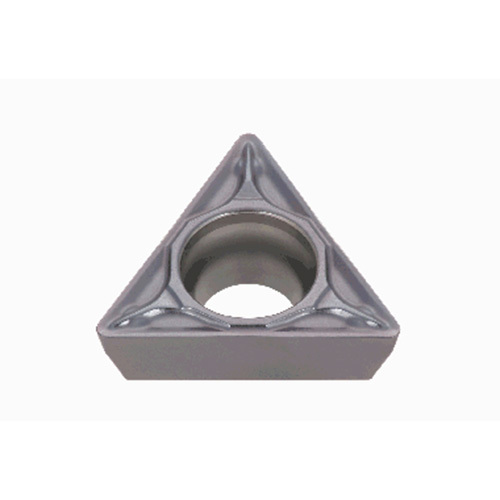

TPMT 2.521 PS AH725
Turning Insert; TPMT2.521-PS AH725 ; 0.543″ Length ; 0.313″ IC ; 0.016″ Corner Radius ; Carbide ; Neutral ; TiAlN
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Min D.O.C. | 0.0197″ |
| Application | | Inserts | | Depth of Cut Maximum (APMX) | 0.0984″ |
| Corner Radius (RE) | 0.0157″ | Min. Turning Feed (ft(min)) | 0.0031 ″/rev |
| Cutting Edge Length (L) | 0.543″ | Max. Turning Feed (ft(max)) | 0.0118 ″/rev |
| Insert Thickness (S) | 1/8″ | Clearance Angle Major (AN) | 11 Degrees |
| Inscribed Circle Diameter (IC) | 0.313″ | Cutting Direction (HAND) | Neutral |
| Cutting Edge Material | Carbide | Chip Breaker Type | Posi-PS |
| Coating | TiAlN | Measurement Type | Inch |
| Grade | AH725 | Body Material | Carbide |
| Fixing Hole Diameter (D1) | 0.134″ | Cutting Edge Effective Length (LE) | 0.487″ |
| Tool Type | Turn Positive Inserts |
Product Features
| Family Description | Positive 11deg relief ang., M class, triangular insert, for finishing to medium cutting | Country of Origin | Japan |
Shipping Info
Package Weight
0.008
