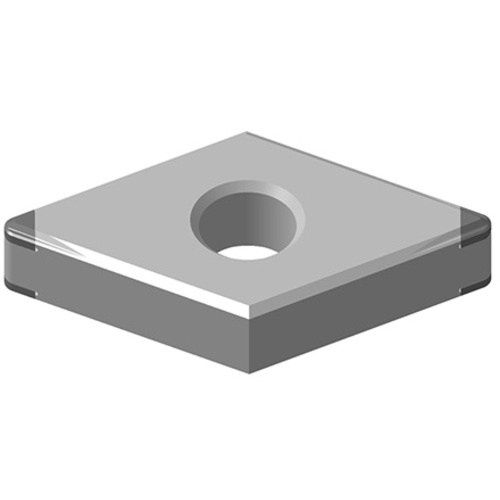

4QP-DNGG432-HF BXA40
Turning Insert; 4QP-DNGG150408-HF BXA40 ; 0.61″ Length ; 1/2″ IC ; 0.031″ Corner Radius ; PCBN ; Neutral ; TiAlN
| Applicable Material | | Hard Materials | | Tool Type | Turn Negative Inserts |
| Application | | Inserts | | Min D.O.C. | 0.0118″ |
| Corner Radius (RE) | 0.0315″ | Depth of Cut Maximum (APMX) | 0.0315″ |
| Cutting Edge Length (L) | 0.61″ | Min. Turning Feed (ft(min)) | 0.002 ″/rev |
| Insert Thickness (S) | 0.187″ | Max. Turning Feed (ft(max)) | 0.0118 ″/rev |
| Inscribed Circle Diameter (IC) | 1/2″ | Cutting Direction (HAND) | Neutral |
| Cutting Edge Material | PCBN | Chip Breaker Type | HF |
| Coating | TiAlN | Measurement Type | Inch |
| Grade | BXA40 | Body Material | Carbide |
| Fixing Hole Diameter (D1) | 0.203″ | Cutting Edge Effective Length (LE) | 0.083″ |
Product Features
| Family Description | Negative relief ang., G class, 55deg rhombic CBN insert with chipbreaker for finishing | Country of Origin | Japan |
Shipping Info
Package Weight
0.055
