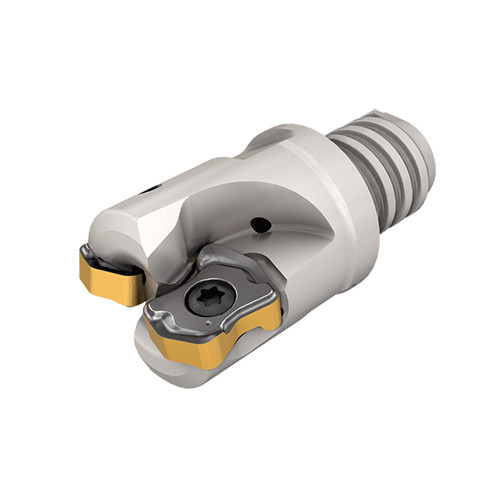

FFX4 ED20/.78-3-MMT12-04

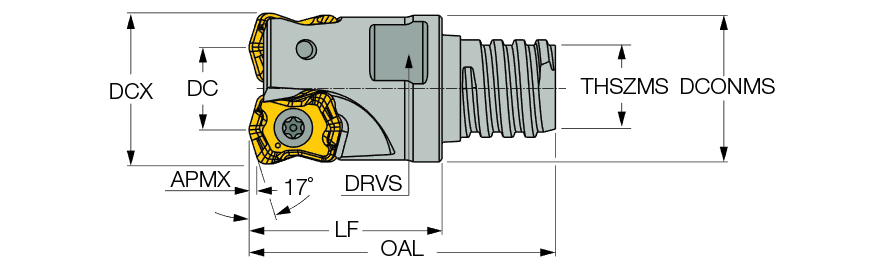

Indexable End Mill; 0.787″ Dia. × 0.0315″ LOC × 0.74″ Shank Dia. × 1.508″ OAL ; 17 Degrees
| Cutting Diameter (DC/DCX) | 0.787″ | Connection Thread Nominal Size Machine Side (THSZMS) | T12 |
| Cutting Diameter (DC) | 0.496″ | Drive Size (DRVS) | 0.591″ |
| Cutting Item Count (CICT) | 3 | Torque (TQ) | 7.97 lbfxin |
| Depth of Cut Maximum (APMX) | 0.0315″ | Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 1.508″ | Tool Cutting Edge Angle (KAPR) | 17 Degrees |
| Ramping Angle Maximum (RMPX) | 2.7 Degrees | Cutting Direction (HAND) | Right Hand |
| Application | | Facing | Fast Feed Milling | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | Side Plunging | | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 0.74″ | Body Material | Steel |
| Master Insert Identification (MIID) | FFX4 XNMU 040310T | Connection Code Machine Side (CCMS) | FLEXFIT |
| Weight of Item (WT) | 0.1 lbs | Cutting Diameter Maximum (DCX) | 0.787″ |
| Functional Length (LF) | 0.984″ |
Product Features
| Family Description | Endmills with MULTI-MASTER threaded adaptation that mount small double-sided "bone shaped" inserts with 4 cutting edges, for fast feed milling. Used for small size pockets milling | Country of Origin | Israel |
| Remarks | For adaptation, click on More Info To generate a straight surface without cusps, the width of cut must not exceed DC Programming radius for inserts XNMU/XNMW: .066 |
Shipping Info
Package Weight
0.222
