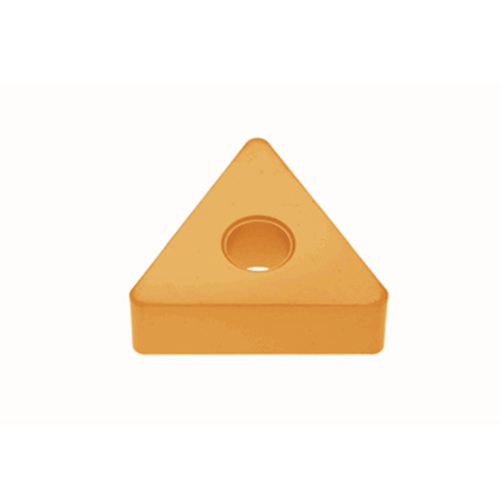

TNMA 333 T5105
Turning Insert; TNMA333 CVD T5105 ; 0.65″ Length ; 3/8″ IC ; 0.047″ Corner Radius ; Carbide ; Neutral ; TiCN+Al2O3+TiN
| Applicable Material | | Cast Iron | | Tool Type | Turn Negative Inserts |
| Application | | Inserts | | Min D.O.C. | 0.0004″ |
| Corner Radius (RE) | 0.0472″ | Depth of Cut Maximum (APMX) | 0.0787″ |
| Cutting Edge Length (L) | 0.65″ | Min. Turning Feed (ft(min)) | 0.002 ″/rev |
| Insert Thickness (S) | 0.187″ | Max. Turning Feed (ft(max)) | 0.0118 ″/rev |
| Inscribed Circle Diameter (IC) | 3/8″ | Cutting Direction (HAND) | Neutral |
| Cutting Edge Material | Carbide | Chip Breaker Type | FT |
| Coating | TiCN+Al2O3+TiN | Measurement Type | Inch |
| Grade | T5105 | Body Material | Carbide |
| Fixing Hole Diameter (D1) | 0.15″ | Cutting Edge Effective Length (LE) | 0.486″ |
Product Features
| Family Description | Negative relief ang., M/G class, triangular insert, without chipbreaker for finishing to medium cutting | Country of Origin | Japan |
Shipping Info
Package Weight
0.019
