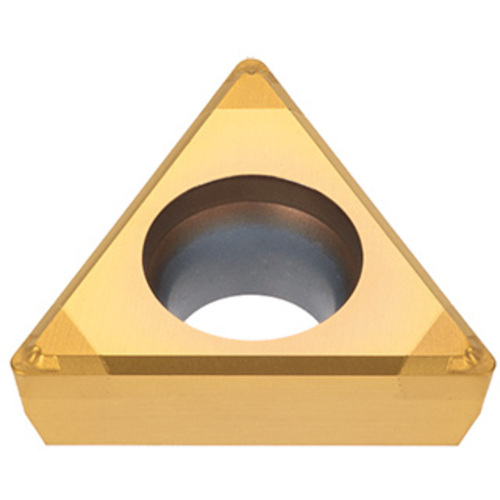

3QP-TPGT 222 HS BXA20
| Applicable Material | | Hard Materials | | Min D.O.C. | 0.0039″ |
| Application | | Inserts | | Depth of Cut Maximum (APMX) | 0.0138″ |
| Corner Radius (RE) | 0.0315″ | Min. Turning Feed (ft(min)) | 0.002 ″/rev |
| Cutting Edge Length (L) | 0.433″ | Max. Turning Feed (ft(max)) | 0.0118 ″/rev |
| Insert Thickness (S) | 1/8″ | Clearance Angle Major (AN) | 11 Degrees |
| Inscribed Circle Diameter (IC) | 1/4″ | Cutting Direction (HAND) | Neutral |
| Cutting Edge Material | PCBN | Chip Breaker Type | Posi-HS |
| Coating | TiAlN | Measurement Type | Inch |
| Grade | BXA20 | Body Material | Carbide |
| Fixing Hole Diameter (D1) | 0.134″ | Cutting Edge Effective Length (LE) | 0.071″ |
| Tool Type | Turn Positive Inserts |
Product Features
| Family Description | Positive 11 deg relief angle, G class, triangular CBN insert with chipbreaker for finishing hardened steel. | Country of Origin | Japan |
Shipping Info
Package Weight
10
