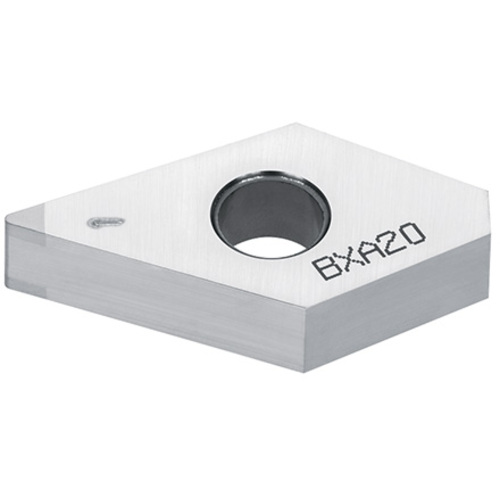

2QP-FNGA 441-L BXA20
| Applicable Material | | Hard Materials | | Tool Type | Turn Negative Inserts |
| Application | | Inserts | | Min D.O.C. | 0.002″ |

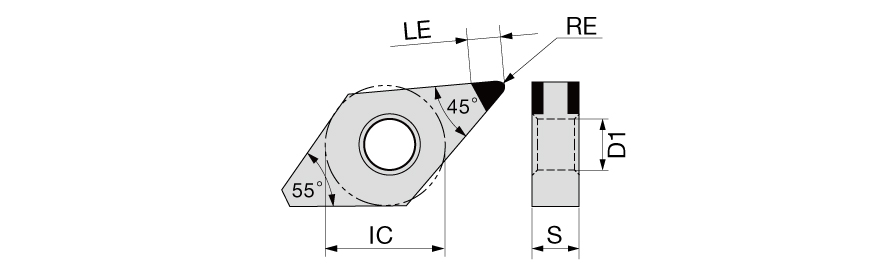

| Corner Radius (RE) | 0.0157″ | Depth of Cut Maximum (APMX) | 0.0197″ |
| Cutting Edge Length (L) | 0.61″ | Min. Turning Feed (ft(min)) | 0.0012 ″/rev |
| Insert Thickness (S) | 1/4″ | Max. Turning Feed (ft(max)) | 0.0098 ″/rev |
| Inscribed Circle Diameter (IC) | 1/2″ | Cutting Direction (HAND) | Neutral |
| Cutting Edge Material | PCBN | Chip Breaker Type | L-CBN |
| Coating | TiAlN | Measurement Type | Inch |
| Grade | BXA20 | Body Material | Carbide |
| Fixing Hole Diameter (D1) | 0.203″ | Cutting Edge Effective Length (LE) | 0.102″ |
Product Features
| Family Description | Negative relief ang., G class CBN insert with corner angle 45 degree for existing toolholder carrying DN**43 insert. | Country of Origin | Japan |
| Remarks | The last letter of designation means as below. F: Sharp edge L: Edge preparation for reducing flank wear LF: Edge preparation for reducing burrs LC: Edge preparation for reducing crater wear H: Edge preparation for reducing fracture W, WL, WJ, WG: Wiper |
