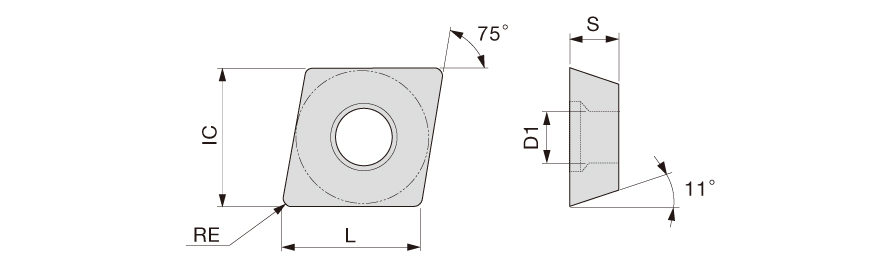

EPGT521-JS SH730 INSERT
Turning Insert; EPGT521-JS SH730 ; 0.161″ Length ; 0.156″ IC ; 0.016″ Corner Radius ; Carbide ; Neutral ; TiAlN

| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Min D.O.C. | 0.06 mm |
| Application | | Inserts | | Depth of Cut Maximum (APMX) | 0.5 mm |
| Corner Radius (RE) | 0.4 mm | Min. Turning Feed (ft(min)) | 0.05 mm/rev |
| Cutting Edge Length (L) | 4.1 mm | Max. Turning Feed (ft(max)) | 0.15 mm/rev |
| Insert Thickness (S) | 1.59 mm | Clearance Angle Major (AN) | 11 Degrees |
| Inscribed Circle Diameter (IC) | 3.97 mm | Cutting Direction (HAND) | Neutral |
| Cutting Edge Material | Carbide | Chip Breaker Type | JS |
| Coating | TiAlN | Measurement Type | Metric |
| Grade | SH730 | Body Material | Carbide |
| Fixing Hole Diameter (D1) | 2.3 mm | Cutting Edge Effective Length (LE) | 3.22 mm |
| Tool Type | Turn Positive Inserts |

Product Features
| Family Description | Positive 11 deg relief angle, G class, 75 deg rhombic insert, 3 dimensional type chipbreaker for cutting on small lathes | Country of Origin | Japan |
| Remarks | "F" included in designation means sharp edge. |
Shipping Info
Package Weight
0.004
