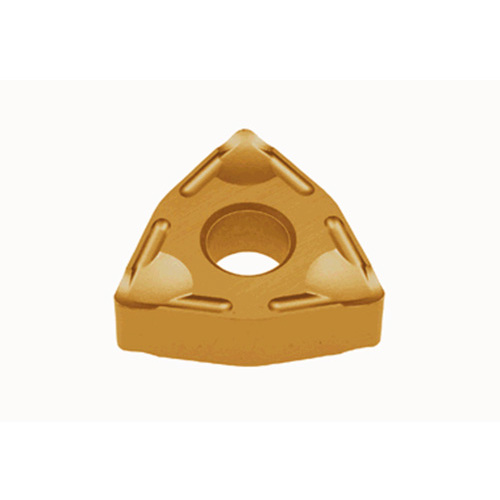

WNMG 431 SS AH6225
Turning Insert; WNMG 431 SS AH6225 ; 0.343″ Length ; 1/2″ IC ; 0.016″ Corner Radius ; Neutral
| Applicable Material | | Steel | Stainless Steel | | Tool Type | Turn Negative Inserts |
| Application | | Inserts | | Min D.O.C. | 0.0196″ |
| Corner Radius (RE) | 0.0157″ | Depth of Cut Maximum (APMX) | 0.1181″ |
| Cutting Edge Length (L) | 0.343″ | Min. Turning Feed (ft(min)) | 0.0031 ″/rev |
| Insert Thickness (S) | 0.187″ | Max. Turning Feed (ft(max)) | 0.0079 ″/rev |
| Inscribed Circle Diameter (IC) | 1/2″ | Cutting Direction (HAND) | Neutral |
| Cutting Edge Material | Carbide | Chip Breaker Type | Nega-SS |
| Coating | TiAlN | Measurement Type | Inch |
| Grade | AH6225 | Body Material | Carbide |
| Fixing Hole Diameter (D1) | 0.203″ | Cutting Edge Effective Length (LE) | 0.302″ |
Product Features
| Family Description | Negative relief ang., M class, trigon insert, for finishing of stainless steel etc. | Country of Origin | Japan |
