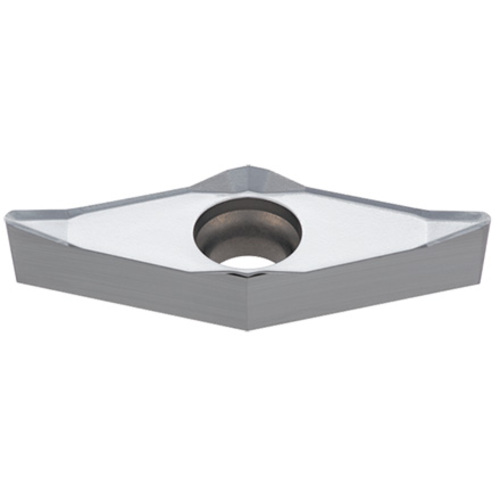

VCGT331AL KS05F TURNING
Turning Insert; VCGT331AL KS05F ; 0.654″ Length ; 3/8″ IC ; 0.016″ Corner Radius ; Carbide ; Neutral
| Applicable Material | | Cast Iron | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Min D.O.C. | 0.5 mm |
| Application | | Inserts | | Depth of Cut Maximum (APMX) | 5 mm |

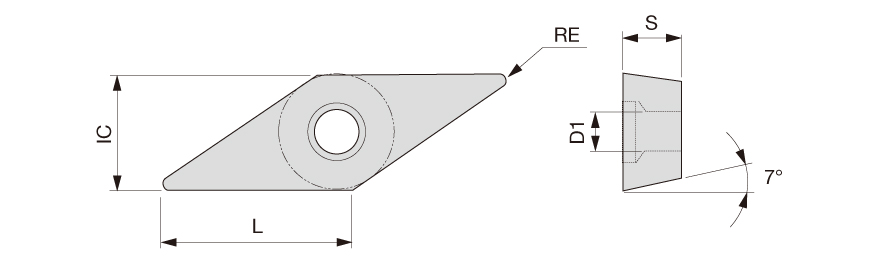

| Corner Radius (RE) | 0.4 mm | Min. Turning Feed (ft(min)) | 0.1 mm/rev |
| Cutting Edge Length (L) | 16.6 mm | Max. Turning Feed (ft(max)) | 0.5 mm/rev |
| Insert Thickness (S) | 4.76 mm | Clearance Angle Major (AN) | 7 Degrees |
| Inscribed Circle Diameter (IC) | 9.525 mm | Cutting Direction (HAND) | Neutral |
| Cutting Edge Material | Carbide | Chip Breaker Type | AL |
| Grade | KS05F | Measurement Type | Metric |
| Fixing Hole Diameter (D1) | 4.4 mm | Body Material | Carbide |
| Tool Type | Turn Inserts AL, HTA Geometric | Cutting Edge Effective Length (LE) | 15.21 mm |
Product Features
| Family Description | Positive 7deg relief ang., G class, 35deg rhombic insert, for aluminum cutting | Country of Origin | Japan |
Shipping Info
Package Weight
0.025
