2QP-CNMA 433-W BX330
| Applicable Material | | Hard Materials | | Tool Type | Turn Negative Inserts |
| Application | | Inserts | | Min D.O.C. | 0.002″ |

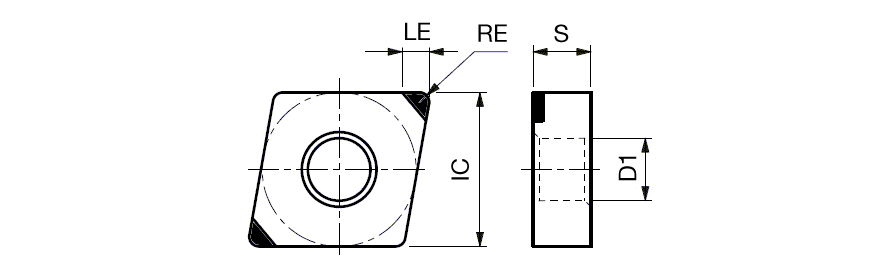

| Corner Radius (RE) | 0.0472″ | Depth of Cut Maximum (APMX) | 0.0197″ |
| Cutting Edge Length (L) | 0.508″ | Min. Turning Feed (ft(min)) | 0.0012 ″/rev |
| Insert Thickness (S) | 0.187″ | Max. Turning Feed (ft(max)) | 0.0079 ″/rev |
| Inscribed Circle Diameter (IC) | 1/2″ | Cutting Direction (HAND) | Neutral |
| Cutting Edge Material | PCBN | Chip Breaker Type | W-CBN |
| Coating | Uncoated | Measurement Type | Inch |
| Grade | BX330 | Body Material | Carbide |
| Fixing Hole Diameter (D1) | 0.203″ | Cutting Edge Effective Length (LE) | 0.094″ |
Product Features

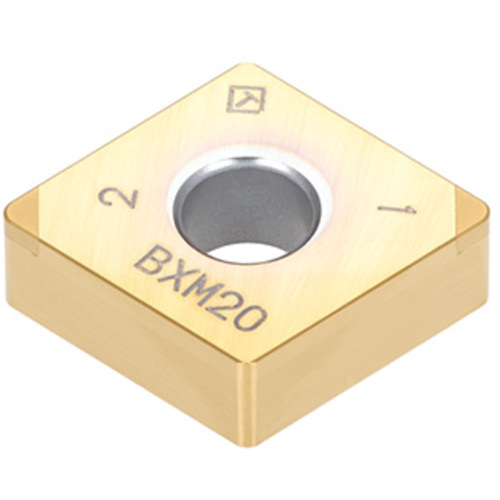

| Family Description | Negative relief angle, M/G class, 80 deg rhombic CBN insert | Country of Origin | JAPAN |
| Remarks | The first letter "T" of designation means 10 pieces per package. The last letter of designation means Edge preparation (EP) as below. Without letter, SR: Standard EP F: Sharp edge E: EP for preventing vibration and for suppressing work deformation L: EP for reducing flank wear LF: EP for reducing burrs LC: EP for reducing crater wear LT, H, HC: EP for reducing fracture FW, MW, W, WL, WJ, WG: Wiper |
Shipping Info
Package Weight
0.051
