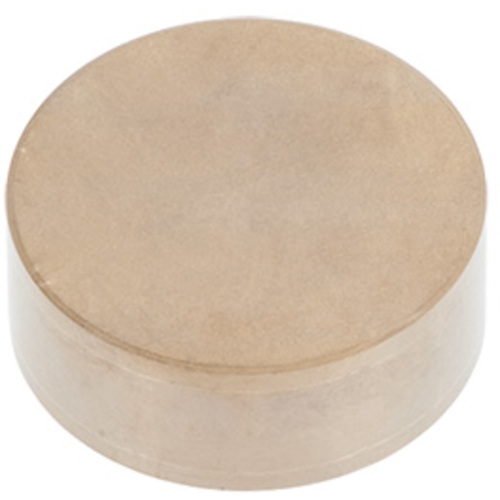

S-RNGN 320 BXC90
Turning Insert; S-RNGN 32 BXC90 ; 3/8″ Length ; 3/8″ IC ; PCBN ; Neutral ; TiN
| Applicable Material | | Cast Iron | Hard Materials | | Min D.O.C. | 0.0019″ |
| Application | | Inserts | | Depth of Cut Maximum (APMX) | 0.1181″ |
| Corner Radius (RE) | 3/16″ | Min. Turning Feed (ft(min)) | 0.002 ″/rev |
| Cutting Edge Length (L) | 3/8″ | Max. Turning Feed (ft(max)) | 0.0157 ″/rev |
| Insert Thickness (S) | 1/8″ | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 3/8″ | Chip Breaker Type | FT-CBN |
| Cutting Edge Material | PCBN | Measurement Type | Inch |
| Coating | TiN | Body Material | Carbide |
| Grade | BXC90 | Cutting Edge Effective Length (LE) | 0.188″ |
| Tool Type | Turn Negative Inserts |
Product Features
| Family Description | Negative relief ang., G class, round solid CBN insert | Country of Origin | Japan |
Shipping Info
Package Weight
0.024
