2QP-CNGA 432 BX360 INSERT
Turning Insert; 2QP-CNGA 432 BX360 ; 0.508″ Length ; 1/2″ IC ; 0.031″ Corner Radius ; PCBN ; Neutral

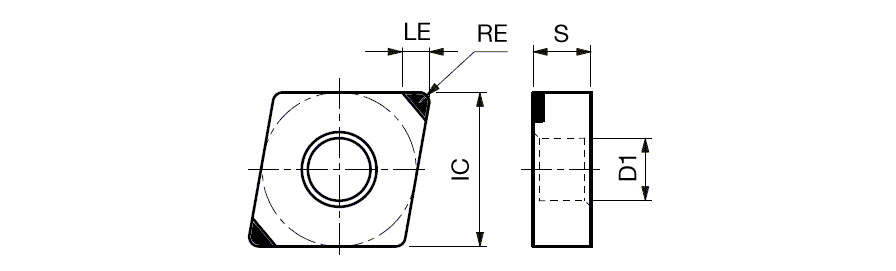

| Applicable Material | | Hard Materials | | Min D.O.C. | 0.05 mm |
| Application | | Inserts | | Depth of Cut Maximum (APMX) | 0.5 mm |
| Corner Radius (RE) | 0.8 mm | Min. Turning Feed (ft(min)) | 0.03 mm/rev |
| Cutting Edge Length (L) | 12.9 mm | Max. Turning Feed (ft(max)) | 0.25 mm/rev |
| Insert Thickness (S) | 4.76 mm | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 12.7 mm | Chip Breaker Type | FT-CBN |
| Cutting Edge Material | PCBN | Measurement Type | Metric |
| Grade | BX360 | Body Material | Carbide |
| Fixing Hole Diameter (D1) | 5.16 mm | Cutting Edge Effective Length (LE) | 2.2 mm |
| Tool Type | Turn Negative Inserts |
Product Features
| Family Description | Negative relief angle, M/G class, 80 deg rhombic CBN insert | Country of Origin | Japan |
| Remarks | The first letter "T" of designation means 10 pieces per package. The last letter of designation means Edge preparation (EP) as below. Without letter, SR: Standard EP F: Sharp edge E: EP for preventing vibration and for suppressing work deformation L: EP for reducing flank wear LF: EP for reducing burrs LC: EP for reducing crater wear LT, H, HC: EP for reducing fracture FW, W, WL, WJ, WG: Wiper |
Shipping Info
Package Weight
0.042
