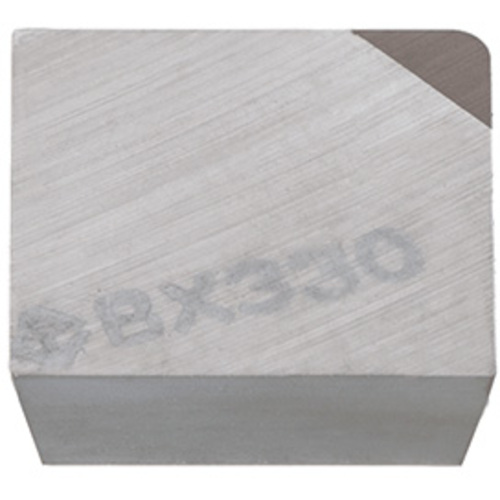

Q-SPGN 322 BX330
Turning Insert; Q-SPGN 322 BX330 ; 3/8″ Length ; 3/8″ IC ; 0.031″ Corner Radius ; PCBN ; Neutral
| Applicable Material | | Hard Materials | | Min D.O.C. | 0.0019″ |
| Application | | Inserts | | Depth of Cut Maximum (APMX) | 0.0197″ |

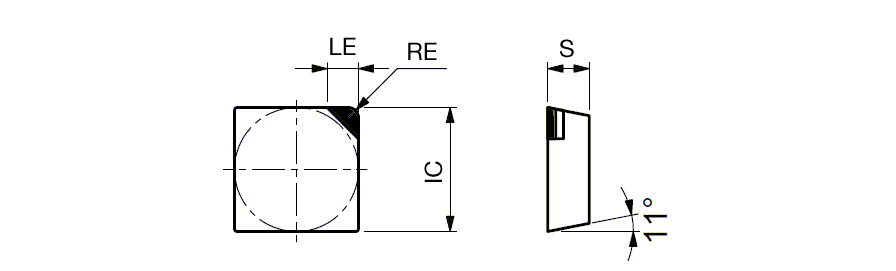

| Corner Radius (RE) | 0.031″ | Min. Turning Feed (ft(min)) | 0.0012 ″/rev |
| Cutting Edge Length (L) | 3/8″ | Max. Turning Feed (ft(max)) | 0.0078 ″/rev |
| Insert Thickness (S) | 1/8″ | Clearance Angle Major (AN) | 11 Degrees |
| Inscribed Circle Diameter (IC) | 3/8″ | Cutting Direction (HAND) | Neutral |
| Cutting Edge Material | PCBN | Chip Breaker Type | FT-CBN |
| Coating | Uncoated | Measurement Type | Inch |
| Grade | BX330 | Body Material | Carbide |
| Tool Type | Turn Ultra hard Inserts | Cutting Edge Effective Length (LE) | 0.11″ |
Product Features
| Family Description | Positive 11deg relief ang., G class, square CBN insert | Country of Origin | Japan |
Shipping Info
Package Weight
0.022
