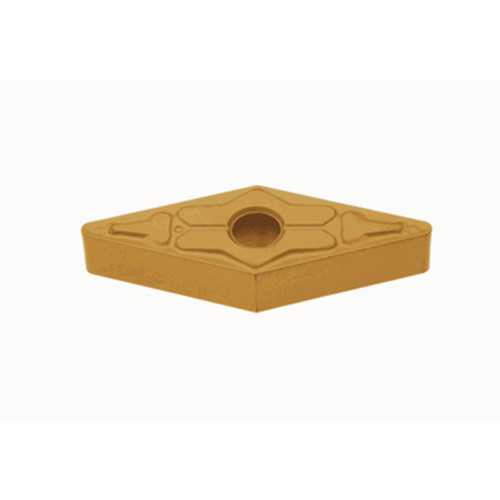

VNMG331TM AH120 TURNING
Turning Insert; VNMG331TM AH120 ; 0.654″ Length ; 3/8″ IC ; 0.016″ Corner Radius ; Carbide ; Neutral ; TiAlN
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Tool Type | Turn Negative Inserts |
| Application | | Inserts | | Min D.O.C. | 1 mm |
| Corner Radius (RE) | 0.4 mm | Depth of Cut Maximum (APMX) | 5 mm |
| Cutting Edge Length (L) | 16.6 mm | Min. Turning Feed (ft(min)) | 0.2 mm/rev |
| Insert Thickness (S) | 4.76 mm | Max. Turning Feed (ft(max)) | 0.5 mm/rev |
| Inscribed Circle Diameter (IC) | 9.525 mm | Cutting Direction (HAND) | Neutral |
| Cutting Edge Material | Carbide | Chip Breaker Type | Nega-TM |
| Coating | TiAlN | Measurement Type | Metric |
| Grade | AH120 | Body Material | Carbide |
| Fixing Hole Diameter (D1) | 3.81 mm |
Product Features
| Family Description | Negative relief ang., M class, 35deg rhombic insert, for medium cutting | Country of Origin | Japan |
Shipping Info
Package Weight
0.025
