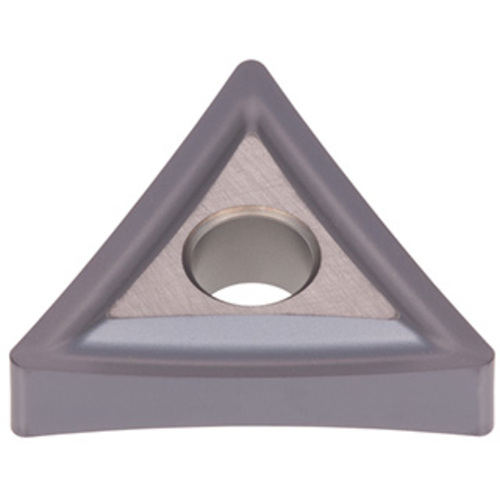

TNMG 431-28 AH110
Turning Insert; TNMG 431 TN28 TURN AH110 ; 0.866″ Length ; 1/2″ IC ; 0.016″ Corner Radius ; Carbide ; Neutral ; TiAlN
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Tool Type | Turn Negative Inserts |
| Application | | Inserts | | Min D.O.C. | 0.0197″ |
| Corner Radius (RE) | 0.0157″ | Depth of Cut Maximum (APMX) | 0.1181″ |
| Cutting Edge Length (L) | 0.866″ | Min. Turning Feed (ft(min)) | 0.0039 ″/rev |
| Insert Thickness (S) | 0.187″ | Max. Turning Feed (ft(max)) | 0.0118 ″/rev |
| Inscribed Circle Diameter (IC) | 1/2″ | Cutting Direction (HAND) | Neutral |
| Cutting Edge Material | Carbide | Chip Breaker Type | 28 |
| Coating | TiAlN | Measurement Type | Inch |
| Grade | AH110 | Body Material | Carbide |
| Fixing Hole Diameter (D1) | 0.203″ |
Product Features
| Family Description | Negative relief ang., M class, triangular insert, for medium cutting | Country of Origin | Japan |
Shipping Info
Package Weight
0.029
