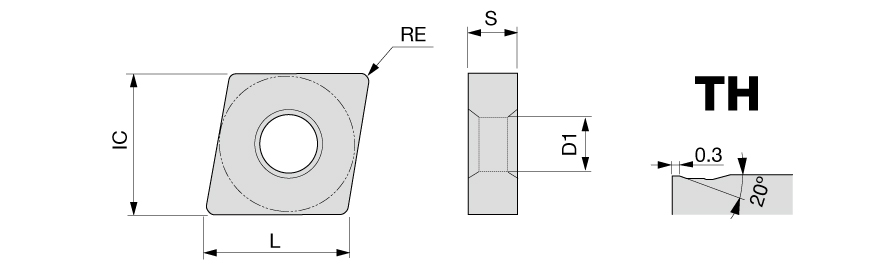

CNMG432TH AH120 TURNING
Turning Insert; CNMG432TH AH120 ; 0.508″ Length ; 1/2″ IC ; 0.031″ Corner Radius ; Carbide ; Neutral ; TiAlN
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Tool Type | Turn Negative Inserts |
| Application | | Inserts | | Min D.O.C. | 3 mm |
| Corner Radius (RE) | 0.8 mm | Depth of Cut Maximum (APMX) | 6 mm |
| Cutting Edge Length (L) | 12.9 mm | Min. Turning Feed (ft(min)) | 0.3 mm/rev |
| Insert Thickness (S) | 4.76 mm | Max. Turning Feed (ft(max)) | 0.6 mm/rev |
| Inscribed Circle Diameter (IC) | 12.7 mm | Cutting Direction (HAND) | Neutral |
| Cutting Edge Material | Carbide | Chip Breaker Type | TH |
| Coating | TiAlN | Measurement Type | Metric |
| Grade | AH120 | Body Material | Carbide |
| Fixing Hole Diameter (D1) | 5.16 mm |
Product Features
| Family Description | Negative relief ang., M class, 80deg rhombic insert, for medium to heavy cutting | Country of Origin | Japan |
Shipping Info
Package Weight
0.02
