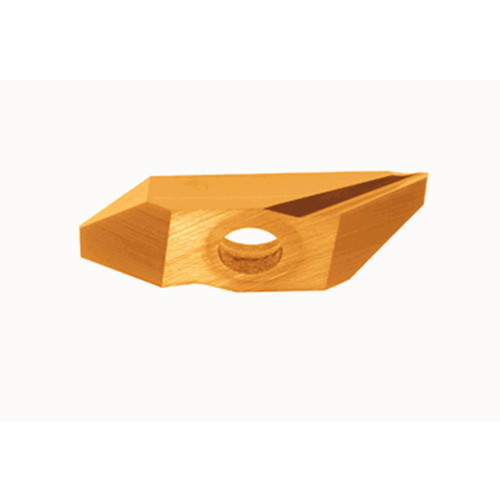

JXBL8005F TH10
Turning Insert; JXBL8005F TH10 ; 0.315″ IC ; 0.002″ Corner Radius ; Carbide ; Left Hand
| Applicable Material | | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Min D.O.C. | 0.0003″ |
| Application | | Inserts | | Depth of Cut Maximum (APMX) | 0.2362″ |
| Corner Radius (RE) | 0.0019″ | Min. Turning Feed (ft(min)) | 0.0004 ″/rev |
| Insert Thickness (S) | 0.156″ | Max. Turning Feed (ft(max)) | 0.0039 ″/rev |

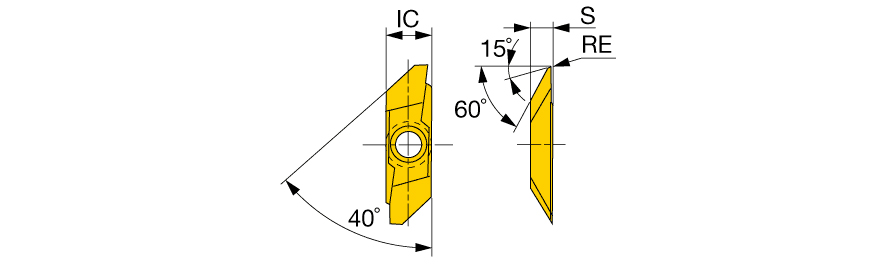

| Inscribed Circle Diameter (IC) | 0.315″ | Clearance Angle Major (AN) | 7 Degrees |
| Cutting Edge Material | Carbide | Cutting Direction (HAND) | Left Hand |
| Coating | Uncoated | Chip Breaker Type | JXB |
| Grade | TH10 | Measurement Type | Inch |
| Fixing Hole Diameter (D1) | 0.173″ | Body Material | Carbide |
| Tool Type | Turn Negative Inserts | Cutting Edge Effective Length (LE) | 0.118″ |
Product Features
| Family Description | Insert for back turning | Country of Origin | Japan |
| Remarks | "F" included in designation means sharp edge. |
Shipping Info
Package Weight
0.02
