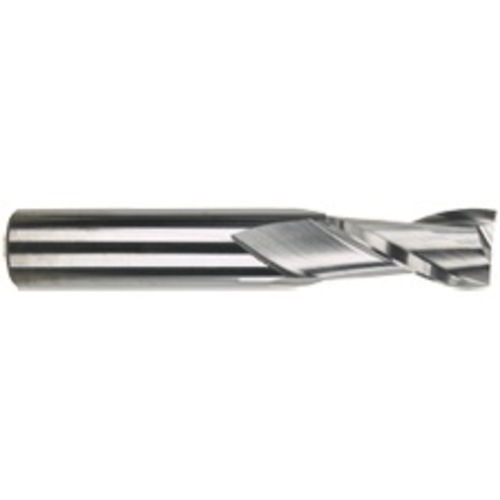

5944C 3/4 × 3/4 2FL SE
SQ End Mill; 3/4″ Dia. × 1-1/2″ LOC × 3/4″ Shank Dia. × 4″ OAL ; 2 FL ; 1-1/2″ LBS ; Carbide ; TiCN ; Series 5944C
| Cutting Diameter (DC) | 3/4″ | Usable Length (LU) | 1-1/2″ |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Application | Finishing |
| Depth of Cut Maximum (APMX) | 1-1/2″ | Tool Type | Single End |
| Overall Length (OAL) | 4″ | Length Group | Regular |
| Cutting Edge Material | Carbide | Coolant Supply Property (CSP) | External |
| Coating | TiCN | Style | Finishing |
| Flute Count (NOF) | 2 | Decimal Equivalent | 0.750″ |
| Shank Type | Round | Measurement Type | Inch |
| End Shape | Square | Series/List # | 5944C |
Product Features
| Remarks | •Solid Carbide 2-Flute Single End Mills •TiCN Coated Regular Length | Country of Origin | USA |
Shipping Info
Package Length
3.12500
Package Width
.75000
Package Height
.75000
Package Weight
1.01
