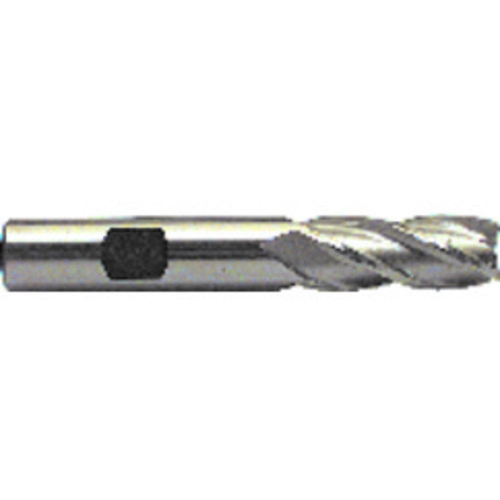

3/16″ × 3/8″ × 1/2″ × 2 3/8″ 4 Flute Single End HSSCo Finishing Center Cutting End Mill-Uncoated Series/List #4586
SQ End Mill; 3/16″ Dia. × 1/2″ LOC × 3/8″ Shank Dia. × 2-3/8″ OAL ; 4 FL ; 1/2″ LBS ; HSSCo ; Uncoated ; Series 4586
| Cutting Diameter (DC) | 3/16″ | Usable Length (LU) | 1/2″ |
| Connection Diameter Machine Side (DCONMS) | 3/8″ | Application | Finishing |
| Depth of Cut Maximum (APMX) | 1/2″ | Tool Type | Single End |
| Overall Length (OAL) | 2-3/8″ | Length Group | Regular |
| Cutting Edge Material | HSSCo | Coolant Supply Property (CSP) | External |
| Coating | Uncoated | Style | Finishing |
| Flute Count (NOF) | 4 | Decimal Equivalent | 0.1875″ |
| Shank Type | Round | Measurement Type | Inch |
| End Shape | Center Cutting | Series/List # | 4586 |
Product Features
| Remarks | •M-42 8% Cobalt Multi-Flute Single End •Regular Length • Center Cutting | Country of Origin | S.Korea |
Shipping Info
Package Length
3.10000
Package Width
.50000
Package Weight
0.062
