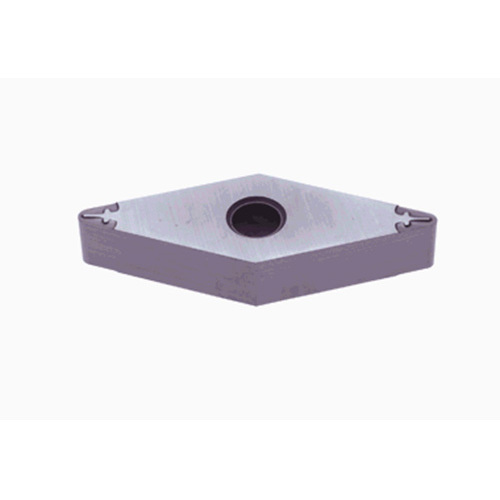

VNGG160404-01 NS520
Turning Insert; VNGG 331 TN01 NS520 ; 16.6 mm Length ; 9.525 mm IC ; 0.4 mm Corner Radius ; Cermet ; Neutral
| Applicable Material | | Steel | Cast Iron | | Tool Type | Turn Negative Inserts |
| Application | | Inserts | | Min D.O.C. | 0.02 mm |

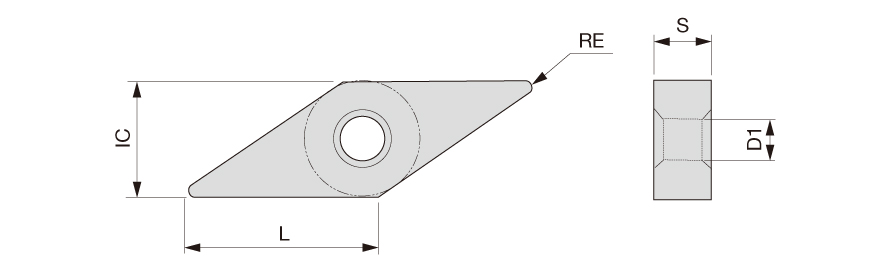

| Corner Radius (RE) | 0.4 mm | Depth of Cut Maximum (APMX) | 0.5 mm |
| Cutting Edge Length (L) | 16.6 mm | Min. Turning Feed (ft(min)) | 0.03 mm/rev |
| Insert Thickness (S) | 4.76 mm | Max. Turning Feed (ft(max)) | 0.15 mm/rev |
| Inscribed Circle Diameter (IC) | 9.525 mm | Cutting Direction (HAND) | Neutral |
| Cutting Edge Material | Cermet | Chip Breaker Type | Nega Type-01 |
| Coating | Uncoated | Measurement Type | Metric |
| Grade | NS520 | Body Material | Carbide |
| Fixing Hole Diameter (D1) | 3.81 mm |
Product Features
| Family Description | Negative relief ang., G class, 35deg rhombic insert, for precision finishing | Country of Origin | JAPAN |
Shipping Info
Package Weight
0.161
