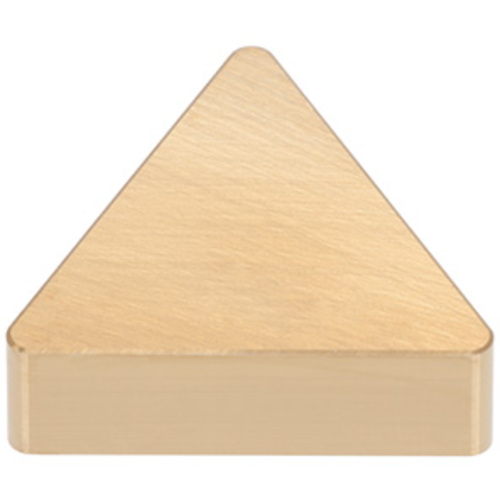

TNGN 332 TH10
Turning Insert; TNGN 332 TH10 ; 0.65″ Length ; 3/8″ IC ; 0.031″ Corner Radius ; Carbide ; Neutral
| Applicable Material | | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Min D.O.C. | 0.0007″ |
| Application | | Inserts | | Depth of Cut Maximum (APMX) | 0.0787″ |
| Corner Radius (RE) | 0.0314″ | Min. Turning Feed (ft(min)) | 0.002 ″/rev |
| Cutting Edge Length (L) | 0.65″ | Max. Turning Feed (ft(max)) | 0.0118 ″/rev |
| Insert Thickness (S) | 0.187″ | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 3/8″ | Chip Breaker Type | FT |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Coating | Uncoated | Body Material | Carbide |
| Grade | TH10 | Cutting Edge Effective Length (LE) | 0.54″ |
| Tool Type | Turn Negative Inserts |
Product Features
| Family Description | Negative relief ang., G class, triangular insert, without chipbreaker for finishing to medium cutting | Country of Origin | Japan |
Shipping Info
Package Weight
0.021
