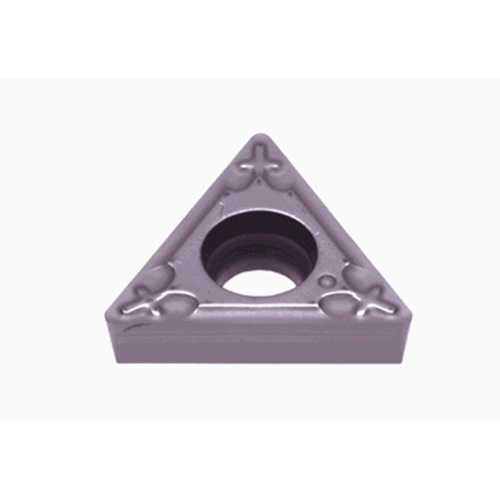

TCGT 32.52-01 TH10
Turning Insert; TCGT32.52 TH10 ; 0.65″ Length ; 3/8″ IC ; 0.031″ Corner Radius ; Carbide ; Neutral

| Applicable Material | | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Min D.O.C. | 0.0008″ |
| Application | | Inserts | | Depth of Cut Maximum (APMX) | 0.0197″ |
| Corner Radius (RE) | 0.031″ | Min. Turning Feed (ft(min)) | 0.002 ″/rev |
| Cutting Edge Length (L) | 0.65″ | Max. Turning Feed (ft(max)) | 0.0059 ″/rev |
| Insert Thickness (S) | 0.156″ | Clearance Angle Major (AN) | 7 Degrees |
| Inscribed Circle Diameter (IC) | 3/8″ | Cutting Direction (HAND) | Neutral |
| Cutting Edge Material | Carbide | Chip Breaker Type | Posi Type-01 |
| Coating | Uncoated | Measurement Type | Inch |
| Grade | TH10 | Body Material | Carbide |
| Fixing Hole Diameter (D1) | 0.173″ | Cutting Edge Effective Length (LE) | 0.54″ |
| Tool Type | Turn Positive Inserts |

Product Features
| Family Description | Positive 7 deg relief angle, G class, triangular insert, for precision finishing | Country of Origin | Japan |
| Remarks | "F" included in designation means sharp edge. |
Shipping Info
Package Weight
0.014
