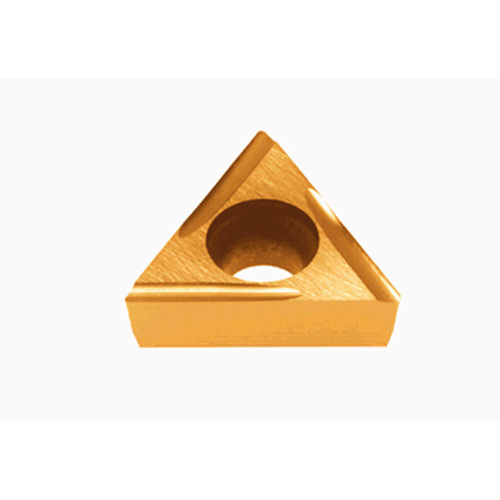

TCGT 63V FR-J08 TH10
Turning Insert; TCGT63V FR-J08 TH10 ; 0.323″ Length ; 0.187″ IC ; 0.001″ Corner Radius ; Carbide ; Right Hand
| Applicable Material | | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Tool Type | Turn Positive Inserts |
| Application | | Inserts | | Min D.O.C. | 0.0079″ |
| Corner Radius (RE) | 0.001″ | Depth of Cut Maximum (APMX) | 0.0394″ |
| Cutting Edge Length (L) | 0.323″ | Min. Turning Feed (ft(min)) | 0.0004 ″/rev |
| Insert Thickness (S) | 0.094″ | Max. Turning Feed (ft(max)) | 0.0059 ″/rev |
| Inscribed Circle Diameter (IC) | 0.187″ | Clearance Angle Major (AN) | 7 Degrees |
| Cutting Edge Material | Carbide | Cutting Direction (HAND) | Right Hand |
| Coating | Uncoated | Chip Breaker Type | J08 |
| Grade | TH10 | Measurement Type | Inch |
| Fixing Hole Diameter (D1) | 0.091″ | Body Material | Carbide |
Product Features
| Family Description | Positive 7 deg relief angle, G class, triangular insert, for finishing | Country of Origin | Japan |
| Remarks | "F" included in designation means sharp edge. |
Shipping Info
Package Weight
0.004
