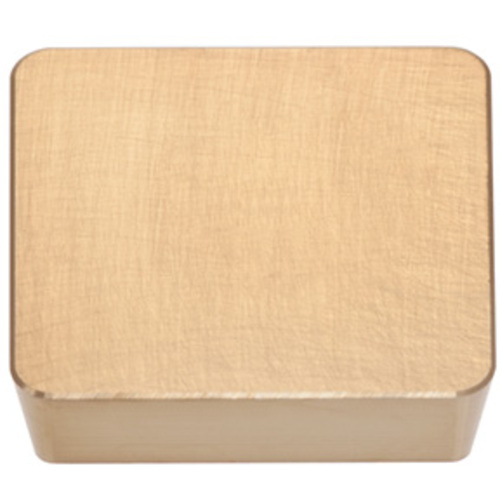

SPGN 433TN FX105

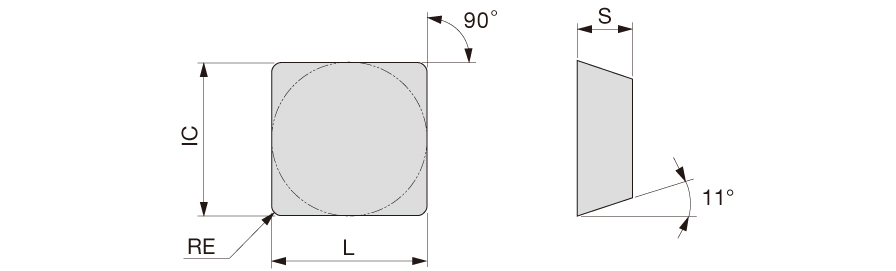

Turning Insert; SPGN433TN CERAMIC FX105 ; 1/2″ Length ; 1/2″ IC ; 0.047″ Corner Radius ; Ceramic ; Neutral
| Applicable Material | | Cast Iron | | Min D.O.C. | 0.002″ |
| Application | | Inserts | | Depth of Cut Maximum (APMX) | 0.1181″ |
| Corner Radius (RE) | 0.0472″ | Min. Turning Feed (ft(min)) | 0.002 ″/rev |
| Cutting Edge Length (L) | 1/2″ | Max. Turning Feed (ft(max)) | 0.0236 ″/rev |
| Insert Thickness (S) | 0.187″ | Clearance Angle Major (AN) | 11 Degrees |
| Inscribed Circle Diameter (IC) | 1/2″ | Cutting Direction (HAND) | Neutral |
| Cutting Edge Material | Ceramic | Chip Breaker Type | FT-FX105 |
| Coating | Uncoated | Measurement Type | Inch |
| Grade | FX105 | Body Material | Carbide |
| Tool Type | Turn Positive Inserts |
Product Features
| Family Description | Positive 11deg relief ang., M class, square insert, without chipbreaker for finishing to medium cutting | Country of Origin | Japan |
Shipping Info
Package Weight
0.007
