SNMG 432-37 GH330

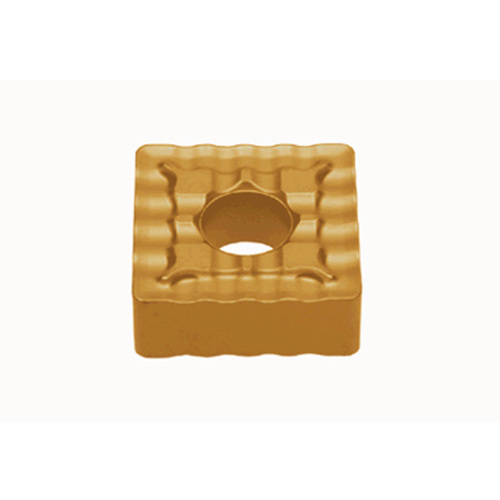

Turning Insert; SNMG 432 TN37 TURN GH330 ; 1/2″ Length ; 1/2″ IC ; 0.031″ Corner Radius ; Carbide ; Neutral ; TiCNO
| Applicable Material | | Steel | Stainless Steel | Cast Iron | | Tool Type | Turn Negative Inserts |
| Application | | Inserts | | Min D.O.C. | 0.0393″ |
| Corner Radius (RE) | 0.0314″ | Depth of Cut Maximum (APMX) | 0.1575″ |
| Cutting Edge Length (L) | 1/2″ | Min. Turning Feed (ft(min)) | 0.0079 ″/rev |
| Insert Thickness (S) | 0.187″ | Max. Turning Feed (ft(max)) | 0.0157 ″/rev |
| Inscribed Circle Diameter (IC) | 1/2″ | Cutting Direction (HAND) | Neutral |
| Cutting Edge Material | Carbide | Chip Breaker Type | 37 |
| Coating | TiCNO | Measurement Type | Inch |
| Grade | GH330 | Body Material | Carbide |
| Fixing Hole Diameter (D1) | 0.203″ |
Product Features
| Family Description | Negative relief ang., M class, square insert, for medium cutting | Country of Origin | Japan |
Shipping Info
Package Weight
0.019
