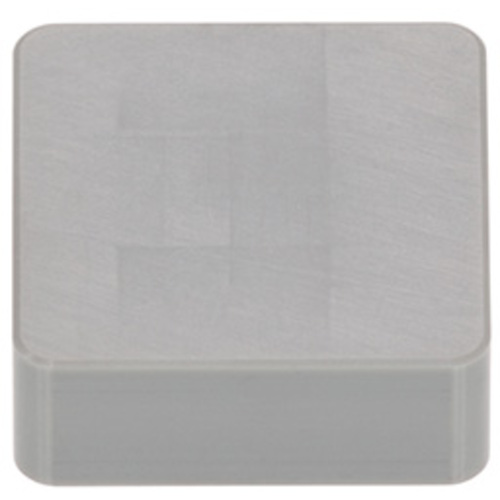

SNGN 452 LX11
Turning Insert; SNGN452 CERAMIC LX11 ; 1/2″ Length ; 1/2″ IC ; 0.031″ Corner Radius ; Ceramic ; Neutral ; TiN
| Applicable Material | | Hard Materials | | Tool Type | Turn Negative Inserts |
| Application | | Inserts | | Min D.O.C. | 0.0008″ |
| Corner Radius (RE) | 0.0315″ | Depth of Cut Maximum (APMX) | 0.0787″ |
| Cutting Edge Length (L) | 1/2″ | Min. Turning Feed (ft(min)) | 0.002 ″/rev |
| Insert Thickness (S) | 0.313″ | Max. Turning Feed (ft(max)) | 0.0079 ″/rev |
| Inscribed Circle Diameter (IC) | 1/2″ | Cutting Direction (HAND) | Neutral |
| Cutting Edge Material | Ceramic | Chip Breaker Type | FT-LX11 |
| Coating | TiN | Measurement Type | Inch |
| Grade | LX11 | Body Material | Carbide |
Product Features
| Family Description | Negative relief ang., M/G class, square insert, without chipbreaker for finishing to medium cutting | Country of Origin | Japan |
Shipping Info
Package Weight
0.018
