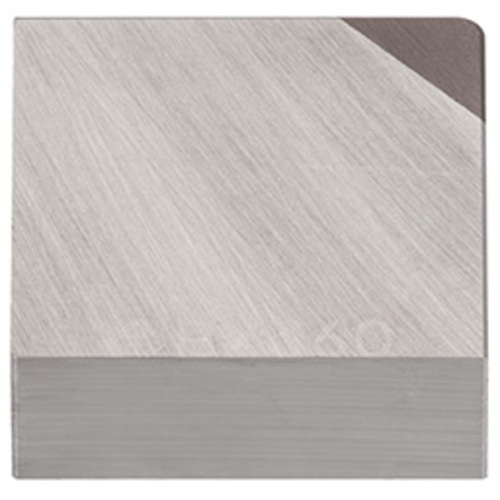

SNGN120412-QBN BX360
Turning Insert; SNGN 433 QBN BX360 ; 12.7 mm Length ; 12.7 mm IC ; 1.2 mm Corner Radius ; PCBN ; Neutral
| Applicable Material | | Hard Materials | | Min D.O.C. | 0.05 mm |
| Application | | Inserts | | Depth of Cut Maximum (APMX) | 0.5 mm |

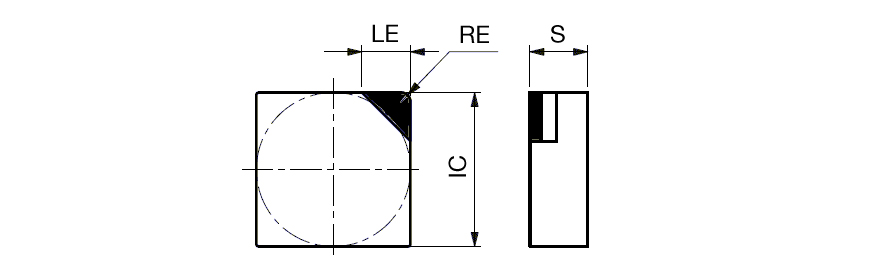

| Corner Radius (RE) | 1.2 mm | Min. Turning Feed (ft(min)) | 0.03 mm/rev |
| Cutting Edge Length (L) | 12.7 mm | Max. Turning Feed (ft(max)) | 0.25 mm/rev |
| Insert Thickness (S) | 4.76 mm | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 12.7 mm | Chip Breaker Type | FT-CBN |
| Cutting Edge Material | PCBN | Measurement Type | Metric |
| Coating | Uncoated | Body Material | Carbide |
| Grade | BX360 | Cutting Edge Effective Length (LE) | 4.1 mm |
| Tool Type | Turn Negative Inserts |
Product Features
| Family Description | Negative relief ang., G class, square CBN insert | Country of Origin | Japan |
Shipping Info
Package Weight
0.053
