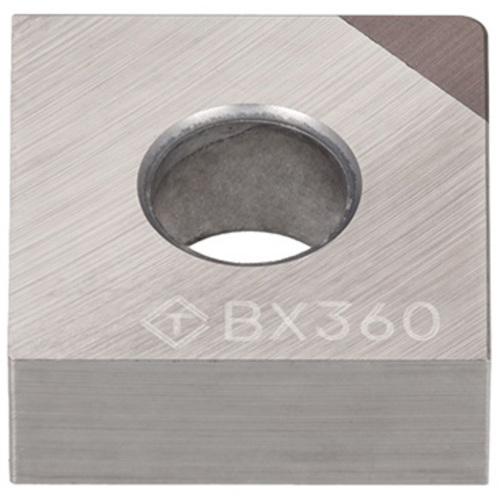

SNGA 433-QBN BX360
Turning Insert; SNGA 433 QBN BX360 ; 1/2″ Length ; 1/2″ IC ; 0.047″ Corner Radius ; PCBN ; Neutral
| Applicable Material | | Hard Materials | | Tool Type | Turn Negative Inserts |
| Application | | Inserts | | Min D.O.C. | 0.0019″ |

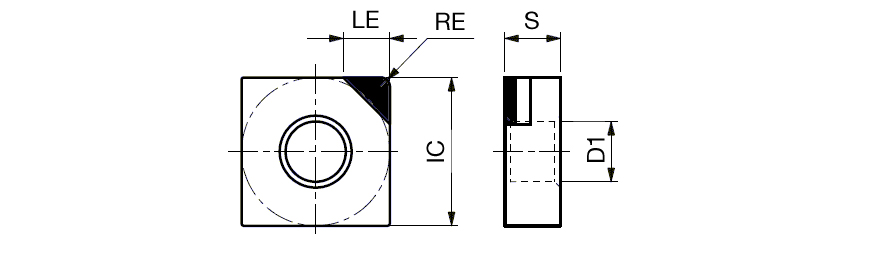

| Corner Radius (RE) | 0.047″ | Depth of Cut Maximum (APMX) | 0.0197″ |
| Cutting Edge Length (L) | 1/2″ | Min. Turning Feed (ft(min)) | 0.0012 ″/rev |
| Insert Thickness (S) | 0.187″ | Max. Turning Feed (ft(max)) | 0.0098 ″/rev |
| Inscribed Circle Diameter (IC) | 1/2″ | Cutting Direction (HAND) | Neutral |
| Cutting Edge Material | PCBN | Chip Breaker Type | FT-CBN |
| Coating | Uncoated | Measurement Type | Inch |
| Grade | BX360 | Body Material | Carbide |
| Fixing Hole Diameter (D1) | 0.203″ | Cutting Edge Effective Length (LE) | 0.161″ |
Product Features
| Family Description | Negative relief ang., G class, square CBN insert | Country of Origin | Japan |
Shipping Info
Package Weight
0.044
