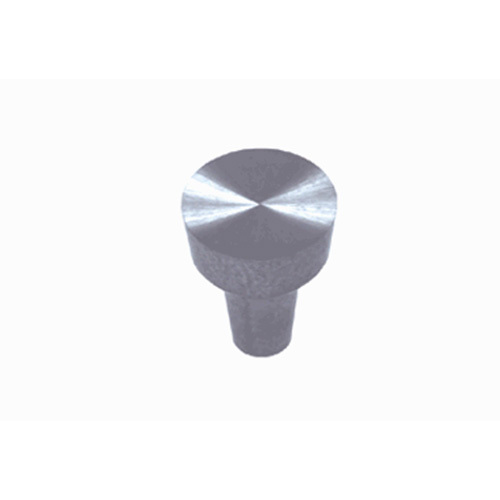

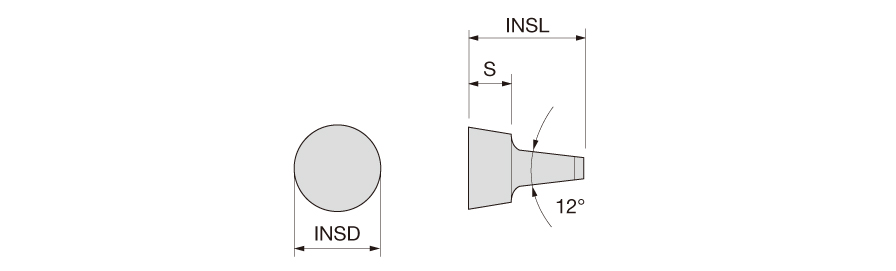

RT06 TH10
| Applicable Material | | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Depth of Cut Maximum (APMX) | 0.0787″ |
| Application | | Inserts | | Min. Turning Feed (ft(min)) | 0 ″/rev |
| Corner Radius (RE) | 0.1181″ | Max. Turning Feed (ft(max)) | 0.0236 ″/rev |
| Cutting Edge Length (L) | 0.236″ | Clearance Angle Major (AN) | 7 Degrees |
| Insert Thickness (S) | 0.118″ | Cutting Direction (HAND) | Neutral |
| Cutting Edge Material | Carbide | Chip Breaker Type | FT |
| Coating | Uncoated | Measurement Type | Inch |
| Grade | TH10 | Body Material | Carbide |
| Tool Type | Turn Negative Inserts | Cutting Edge Effective Length (LE) | 0.118″ |
| Min D.O.C. | 0″ |
Product Features
| Family Description | Positive relief ang., special round inserts | Country of Origin | Japan |
Shipping Info
Package Weight
0.006
