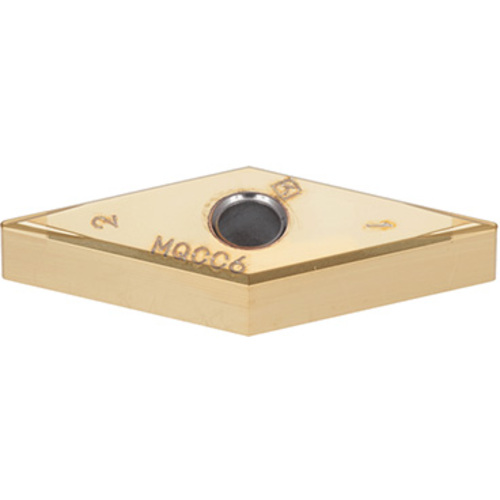

2QP-VNGM 332 HM BXM20
Turning Insert; 2QP-VNGM 332 HM BXM20 ; 0.654″ Length ; 3/8″ IC ; 0.031″ Corner Radius ; PCBN ; Neutral ; TiCN
| Applicable Material | | Hard Materials | | Tool Type | Turn Negative Inserts |
| Application | | Inserts | | Min D.O.C. | 0.0196″ |
| Corner Radius (RE) | 0.031″ | Depth of Cut Maximum (APMX) | 0.0394″ |
| Cutting Edge Length (L) | 0.654″ | Min. Turning Feed (ft(min)) | 0.002 ″/rev |
| Insert Thickness (S) | 0.187″ | Max. Turning Feed (ft(max)) | 0.0118 ″/rev |
| Inscribed Circle Diameter (IC) | 3/8″ | Cutting Direction (HAND) | Neutral |
| Cutting Edge Material | PCBN | Chip Breaker Type | HM |
| Coating | TiCN | Measurement Type | Inch |
| Grade | BXM20 | Body Material | Carbide |
| Fixing Hole Diameter (D1) | 0.15″ | Cutting Edge Effective Length (LE) | 0.087″ |
Product Features
| Family Description | Negative relief ang., G class, 35deg rhombic CBN insert, with chipbreaker for medium cutting to roughing | Country of Origin | Japan |
Shipping Info
Package Weight
0.051
