KNMX160405R-S1 GH330

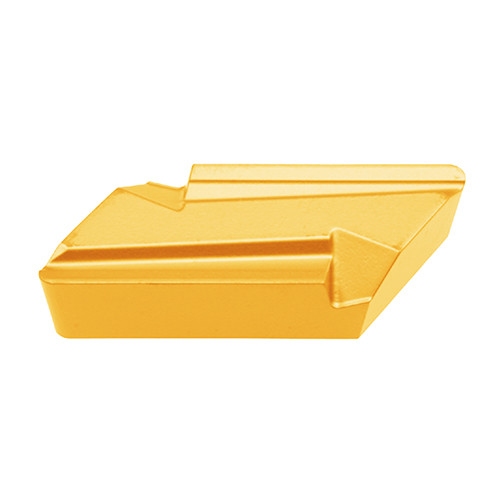

Turning Insert; KNMX160405R-S1 GH330 ; 0.776″ Length ; 3/8″ IC ; 0.02″ Corner Radius ; Carbide ; Right Hand ; TiCNO
| Applicable Material | | Steel | Stainless Steel | Cast Iron | | Min D.O.C. | 0.0039″ |
| Application | | Inserts | | Depth of Cut Maximum (APMX) | 0.0197″ |
| Corner Radius (RE) | 0.02″ | Min. Turning Feed (ft(min)) | 0.002 ″/rev |
| Cutting Edge Length (L) | 0.776″ | Max. Turning Feed (ft(max)) | 0.0118 ″/rev |
| Insert Thickness (S) | 0.187″ | Cutting Direction (HAND) | Right Hand |
| Inscribed Circle Diameter (IC) | 3/8″ | Chip Breaker Type | S1 |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Coating | TiCNO | Body Material | Carbide |
| Grade | GH330 | Cutting Edge Effective Length (LE) | 0.776″ |
| Tool Type | Turn Negative Inserts |
Product Features
| Family Description | Negative relief angle, 55deg parallelogram insert, for finishing | Country of Origin | Japan |
Shipping Info
Package Weight
0.028
