DNGN150404 LX11

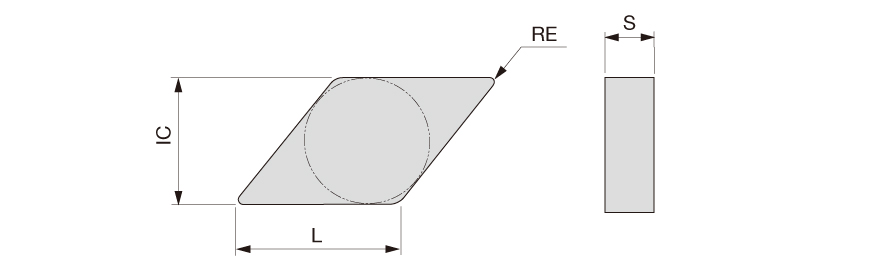

Turning Insert; DNGN 431 CERAMIC LX11 ; 15.5 mm Length ; 12.7 mm IC ; 0.4 mm Corner Radius ; Ceramic ; Neutral ; TiN
| Applicable Material | | Hard Materials | | Tool Type | Turn Negative Inserts |
| Application | | Inserts | | Min D.O.C. | 0.02 mm |
| Corner Radius (RE) | 0.4 mm | Depth of Cut Maximum (APMX) | 2 mm |
| Cutting Edge Length (L) | 15.5 mm | Min. Turning Feed (ft(min)) | 0.05 mm/rev |
| Insert Thickness (S) | 4.76 mm | Max. Turning Feed (ft(max)) | 0.2 mm/rev |
| Inscribed Circle Diameter (IC) | 12.7 mm | Cutting Direction (HAND) | Neutral |
| Cutting Edge Material | Ceramic | Chip Breaker Type | FT-LX11 |
| Coating | TiN | Measurement Type | Metric |
| Grade | LX11 | Body Material | Carbide |
Product Features
| Family Description | Negative relief ang., G class, 55deg rhombic insert without chipbreaker for finishing to medium cutting | Country of Origin | Japan |
Shipping Info
Package Weight
0.015
