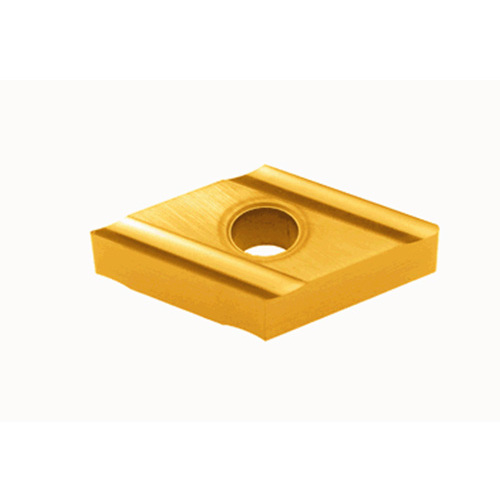

DNGG 430.5 R-P TH10
Turning Insert; DNGG 430.5 FRP TH10 ; 0.61″ Length ; 1/2″ IC ; 0.008″ Corner Radius ; Carbide ; Right Hand
| Applicable Material | | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Tool Type | Turn Inserts AL, HTA Geometric |
| Application | | Inserts | | Min D.O.C. | 0.0197″ |

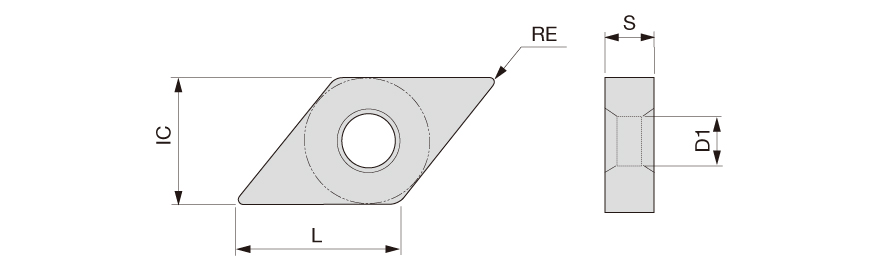

| Corner Radius (RE) | 0.008″ | Depth of Cut Maximum (APMX) | 0.1575″ |
| Cutting Edge Length (L) | 0.61″ | Min. Turning Feed (ft(min)) | 0.0079 ″/rev |
| Insert Thickness (S) | 0.187″ | Max. Turning Feed (ft(max)) | 0.0197 ″/rev |
| Inscribed Circle Diameter (IC) | 1/2″ | Cutting Direction (HAND) | Right Hand |
| Cutting Edge Material | Carbide | Chip Breaker Type | P |
| Coating | Uncoated | Measurement Type | Inch |
| Grade | TH10 | Body Material | Carbide |
| Fixing Hole Diameter (D1) | 0.203″ | Cutting Edge Effective Length (LE) | 0.591″ |
Product Features
| Family Description | Negative relief ang., G class, 55deg rhombic insert, for medium cutting | Country of Origin | Japan |
Shipping Info
Package Weight
0.031
