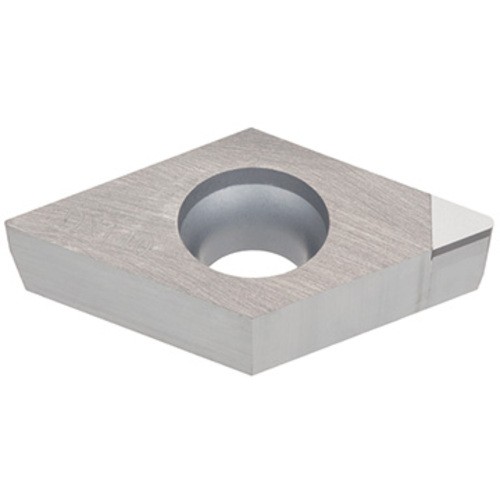

DCGW21.51-DIA DX140 INS

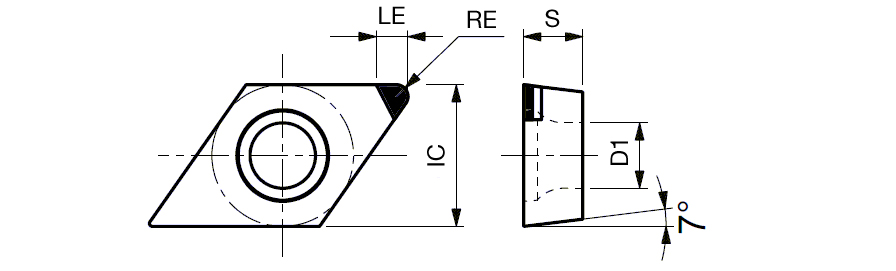

Turning Insert; DCGW21.51-DIA DX140 ; 0.307″ Length ; 1/4″ IC ; 0.016″ Corner Radius ; PCD ; Neutral
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Min D.O.C. | 0.05 mm |
| Application | | Inserts | | Depth of Cut Maximum (APMX) | 1 mm |
| Corner Radius (RE) | 0.4 mm | Min. Turning Feed (ft(min)) | 0.05 mm/rev |
| Cutting Edge Length (L) | 7.8 mm | Max. Turning Feed (ft(max)) | 0.2 mm/rev |
| Insert Thickness (S) | 2.38 mm | Clearance Angle Major (AN) | 7 Degrees |
| Inscribed Circle Diameter (IC) | 6.35 mm | Cutting Direction (HAND) | Neutral |
| Cutting Edge Material | PCD | Chip Breaker Type | FT-DIA |
| Grade | DX140 | Measurement Type | Metric |
| Fixing Hole Diameter (D1) | 2.8 mm | Body Material | Carbide |
| Tool Type | Turn Ultra hard Inserts | Cutting Edge Effective Length (LE) | 2.1 mm |
Product Features
| Family Description | Positive 7 deg relief angle, G class, 55 deg rhombic PCD insert | Country of Origin | Japan |
Shipping Info
Package Weight
0.026
