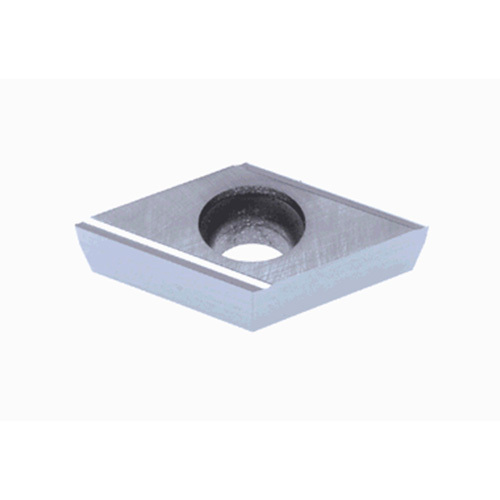

DCGT 32.50 FL-J10 TH10
Turning Insert; DCGT32.50FL-J10 TH10 ; 0.457″ Length ; 3/8″ IC ; 0.004″ Corner Radius ; Carbide ; Left Hand
| Applicable Material | | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Min D.O.C. | 0.0004″ |
| Application | | Inserts | | Depth of Cut Maximum (APMX) | 0.1969″ |
| Corner Radius (RE) | 0.004″ | Min. Turning Feed (ft(min)) | 0.0004 ″/rev |
| Cutting Edge Length (L) | 0.457″ | Max. Turning Feed (ft(max)) | 0.0039 ″/rev |
| Insert Thickness (S) | 0.156″ | Clearance Angle Major (AN) | 7 Degrees |
| Inscribed Circle Diameter (IC) | 3/8″ | Cutting Direction (HAND) | Left Hand |
| Cutting Edge Material | Carbide | Chip Breaker Type | J10 |
| Coating | Uncoated | Measurement Type | Inch |
| Grade | TH10 | Body Material | Carbide |
| Fixing Hole Diameter (D1) | 0.173″ | Cutting Edge Effective Length (LE) | 0.441″ |
| Tool Type | Turn Positive Inserts |
Product Features
| Family Description | Positive 7 deg relief angle, G class, 55 deg rhombic insert for finishing to medium cutting | Country of Origin | Japan |
| Remarks | "F" included in designation means sharp edge. |
Shipping Info
Package Weight
0.013
