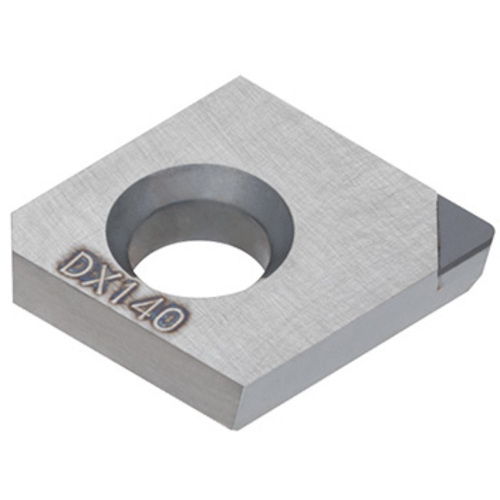

CPGA 31.50.5 DIA DX140
Turning Insert; CPGA090202-DIA DX140 ; 0.382″ Length ; 3/8″ IC ; 0.008″ Corner Radius ; PCD
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Tool Type | Turn Ultra hard Inserts |
| Application | | Inserts | | Min D.O.C. | 0.0019″ |

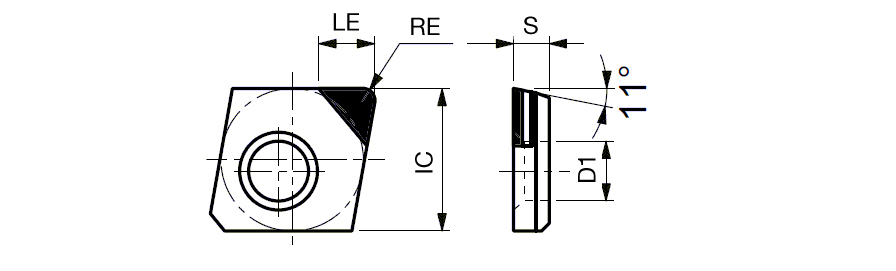

| Corner Radius (RE) | 0.008″ | Depth of Cut Maximum (APMX) | 0.0394″ |
| Cutting Edge Length (L) | 0.382″ | Min. Turning Feed (ft(min)) | 0.002 ″/rev |
| Insert Thickness (S) | 0.094″ | Max. Turning Feed (ft(max)) | 0.0078 ″/rev |
| Inscribed Circle Diameter (IC) | 3/8″ | Chip Breaker Type | FT-DIA |
| Cutting Edge Material | PCD | Measurement Type | Inch |
| Coating | Uncoated | Body Material | Carbide |
| Grade | DX140 | Cutting Edge Effective Length (LE) | 0.094″ |
| Fixing Hole Diameter (D1) | 0.157″ |
Product Features
| Family Description | Positive 11deg relief ang., G class, 80deg rhombic PCD insert | Country of Origin | Japan |
Shipping Info
Package Weight
0.029
