FNMG 333E TSF T9225

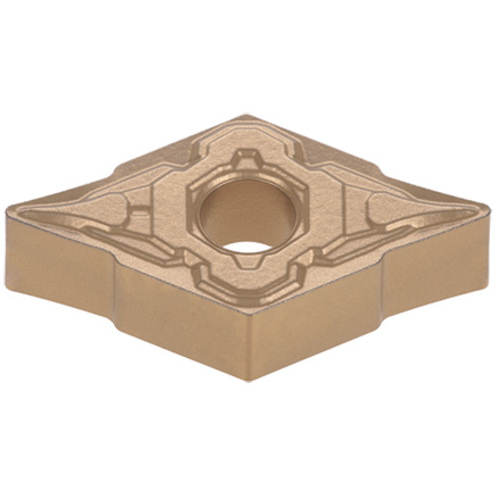

Turning Insert; FNMG 333E TSF T9225 ; 0.457″ Length ; 3/8″ IC ; 0.047″ Corner Radius ; Neutral
| Applicable Material | | Steel | Stainless Steel | Cast Iron | | Tool Type | Turn Negative Inserts |
| Application | | Inserts | | Min D.O.C. | 0.0079″ |

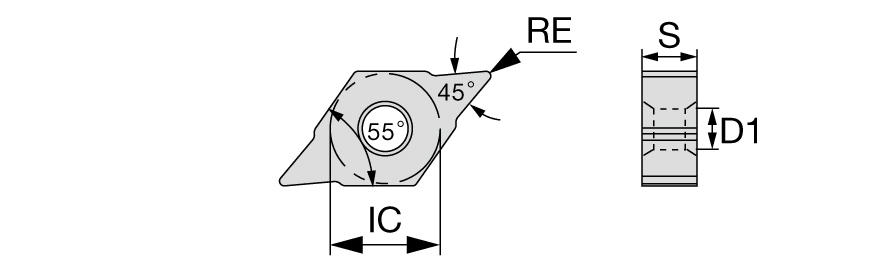

| Corner Radius (RE) | 0.0472″ | Depth of Cut Maximum (APMX) | 0.059″ |
| Cutting Edge Length (L) | 0.457″ | Min. Turning Feed (ft(min)) | 0.0031 ″/rev |
| Insert Thickness (S) | 0.187″ | Max. Turning Feed (ft(max)) | 0.0157 ″/rev |
| Inscribed Circle Diameter (IC) | 3/8″ | Cutting Direction (HAND) | Neutral |
| Cutting Edge Material | Carbide | Chip Breaker Type | Nega-TSF |
| Coating | Ti-compound+Al2O3+TiN | Measurement Type | Inch |
| Grade | T9225 | Body Material | Carbide |
| Fixing Hole Diameter (D1) | 0.15″ | Cutting Edge Effective Length (LE) | 0.118″ |
Product Features

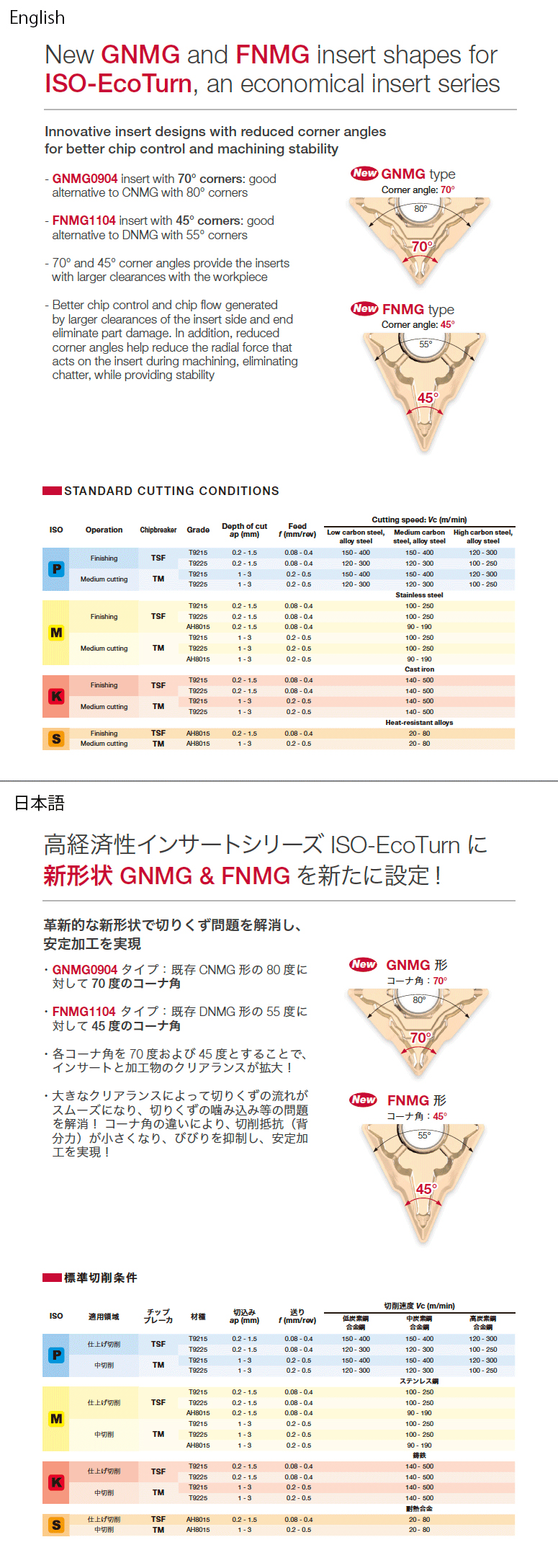

| Family Description | Negative relief ang., M class insert for finishing with corner angle 45 degree for existing toolholder carrying DN**33*E insert. | Country of Origin | Japan |
| Remarks | Make sure to offset the cutting edge position after insert change. Please note that the insert shim may interfere with the workpiece when FNMG insert is used with Q style toolholder to undercut a work diameter of 50 mm or smaller. |
