DXMU 222L TS T9215

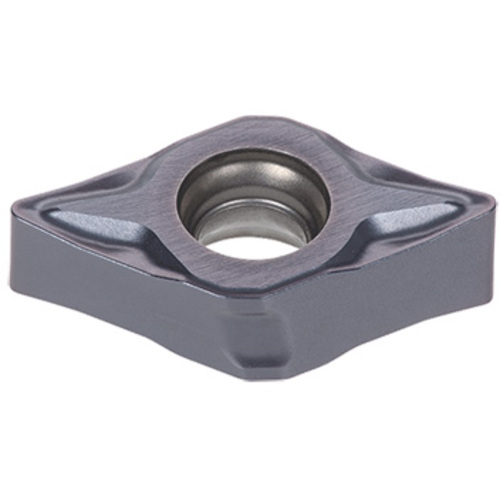

Turning Insert; DXMU070308L-TS T9215 ; Carbide ; Left Hand ; TiCN+Al2O3+TiN

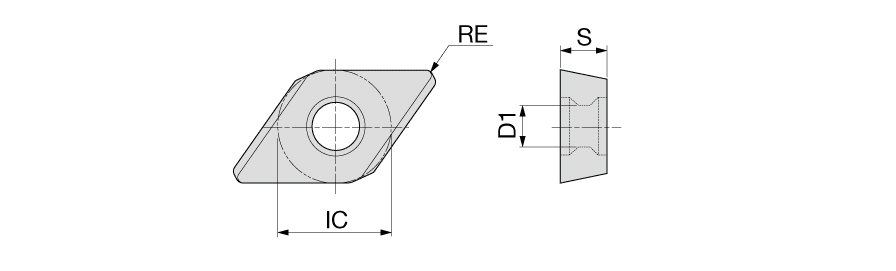

| Applicable Material | | Steel | Stainless Steel | Cast Iron | | Min D.O.C. | 0.0118″ |
| Application | | Inserts | | Depth of Cut Maximum (APMX) | 0.0787″ |
| Corner Radius (RE) | 0.0315″ | Min. Turning Feed (ft(min)) | 0.0031 ″/rev |
| Insert Thickness (S) | 1/8″ | Max. Turning Feed (ft(max)) | 0.0118 ″/rev |
| Cutting Edge Material | Carbide | Cutting Direction (HAND) | Left Hand |
| Coating | Ti-compound+Al2O3+TiN | Chip Breaker Type | MFT-TS |
| Grade | T9215 | Measurement Type | Inch |
| Fixing Hole Diameter (D1) | 0.106″ | Body Material | Carbide |
| Tool Type | Turn Positive Inserts | Cutting Edge Effective Length (LE) | 0.228″ |
Product Features
| Family Description | Double sided 55 deg rhombic M class insert with TS chipbreaker for finishing to medium cutting | Country of Origin | Japan |
