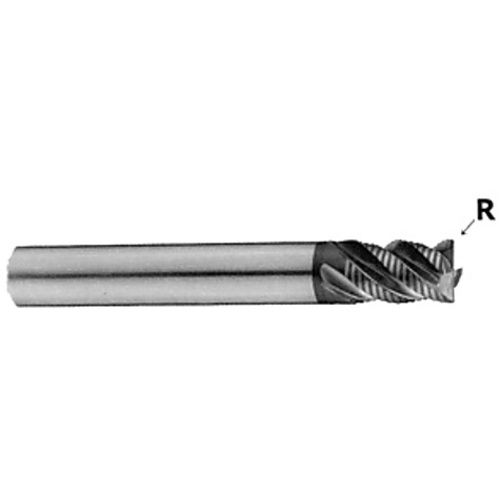

Corner Radius End Mill; 10 mm Dia. × 30 mm LOC × 10 mm Shank Dia. × 72 mm OAL ; 4 FL ; Carbide
| Cutting Diameter (DC) | 10 mm | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Usable Length (LU) | 15 mm |
| Depth of Cut Maximum (APMX) | 30 mm | Corner Radius (RE) | 0.5 mm |
| Overall Length (OAL) | 72 mm | Flute Type | Roughing |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.3937″ |
| Coating | Y-Coating | Measurement Type | Metric |
| Flute Count (NOF) | 4 | Series/List # | G9D77 |
| Shank Type | Round |
Product Features
| Country of Origin | S.Korea |
