2QP-DCGW 32.52-LF BXA10

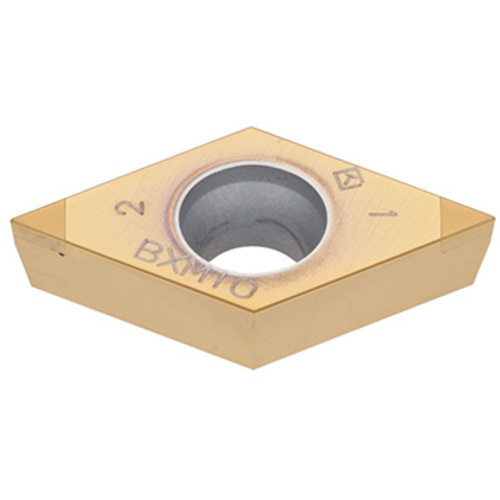

Turning Insert; 2QP-DCGW11T308-LF BXA10 ; 0.457″ Length ; 3/8″ IC ; 0.031″ Corner Radius ; Neutral

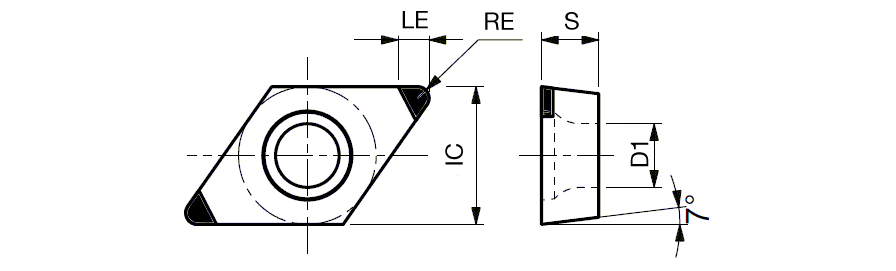

| Applicable Material | | Hard Materials | | Min D.O.C. | 0.002″ |
| Application | | Inserts | | Depth of Cut Maximum (APMX) | 0.0197″ |
| Corner Radius (RE) | 0.0315″ | Min. Turning Feed (ft(min)) | 0.0012 ″/rev |
| Cutting Edge Length (L) | 0.457″ | Max. Turning Feed (ft(max)) | 0.0098 ″/rev |
| Insert Thickness (S) | 0.156″ | Clearance Angle Major (AN) | 7 Degrees |
| Inscribed Circle Diameter (IC) | 3/8″ | Cutting Direction (HAND) | Neutral |
| Cutting Edge Material | PCBN | Chip Breaker Type | LF-CBN |
| Coating | TiAlN+TiCN | Measurement Type | Inch |
| Grade | BXA10 | Body Material | Carbide |
| Fixing Hole Diameter (D1) | 0.173″ | Cutting Edge Effective Length (LE) | 0.083″ |
| Tool Type | Turn Ultra hard Inserts |
Product Features
| Family Description | Positive 7 deg relief angle, M/G class, 55 deg rhombic CBN insert | Country of Origin | Japan |
| Remarks | The last letter of designation means Edge preparation (EP) as below. Without letter, SR: Standard EP F: Sharp edge E: EP for preventing vibration and for suppressing work deformation L: EP for reducing flank wear LF: EP for reducing burrs LC: EP for reducing crater wear LT, H, HC: EP for reducing fracture W, WL, WJ, WG: Wiper |
Shipping Info
Package Weight
0.031
