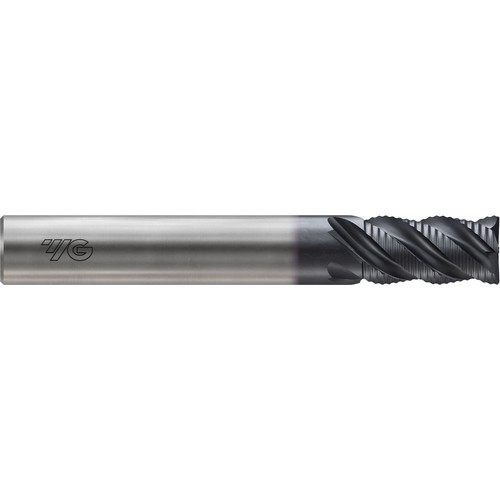

Corner Radius End Mill; 3/4″ Dia. × 1-5/8″ LOC × 3/4″ Shank Dia. × 4″ OAL ; 5 FL ; Carbide ; Y-Coating ; Series G929
SQ End Mill; 3/4″ Dia. × 1-5/8″ LOC × 3/4″ Shank Dia. × 4″ OAL ; 0.04″ RE ; 5 FL ; Carbide ; AlCrN ; Series G929
| Cutting Diameter (DC) | 3/4″ | Application | Roughing |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Corner Radius (RE) | 0.04″ |
| Depth of Cut Maximum (APMX) | 1-5/8″ | Tool Type | Roughing Corner Radius EndMill |
| Overall Length (OAL) | 4″ | Length Group | Regular |
| Cutting Edge Material | Carbide | Flute Type | Roughing |
| Coating | AlCrN | Decimal Equivalent | 0.75″ |
| Flute Count (NOF) | 5 | Measurement Type | Inch |
| Flute Helix Angle (FHA) | Multi Helix | Series/List # | G929 |
| Shank Type | Weldon | Cutting Direction (HAND) | Right Hand |
| End Shape | Corner Radius | Center Cutting | Yes |
| Applicable Material | | Steel | Cast Iron | |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
4.5
Package Width
1.125
Package Height
1.125
Package Weight
0.775
