2QP-CPGW 2.51.50.5 BXA10

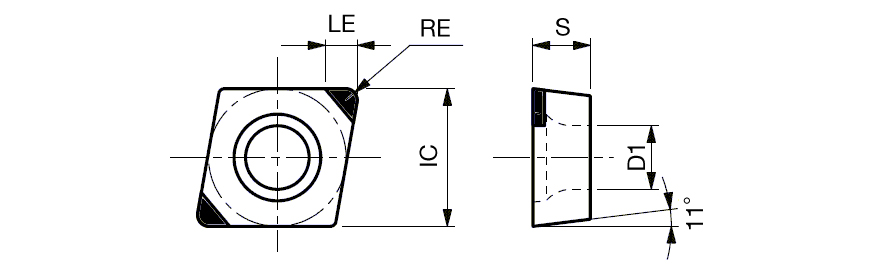

Turning Insert; 2QP-CPGW080202 BXA10 ; 0.319″ Length ; 0.313″ IC ; 0.008″ Corner Radius ; Neutral
| Applicable Material | | Hard Materials | | Min D.O.C. | 0.002″ |
| Application | | Inserts | | Depth of Cut Maximum (APMX) | 0.0197″ |
| Corner Radius (RE) | 0.0079″ | Min. Turning Feed (ft(min)) | 0.0012 ″/rev |
| Cutting Edge Length (L) | 0.319″ | Max. Turning Feed (ft(max)) | 0.0098 ″/rev |
| Insert Thickness (S) | 0.094″ | Clearance Angle Major (AN) | 11 Degrees |
| Inscribed Circle Diameter (IC) | 0.313″ | Cutting Direction (HAND) | Neutral |
| Cutting Edge Material | PCBN | Chip Breaker Type | FT-CBN |
| Coating | TiAlN+TiCN | Measurement Type | Inch |
| Grade | BXA10 | Body Material | Carbide |
| Fixing Hole Diameter (D1) | 0.134″ | Cutting Edge Effective Length (LE) | 0.091″ |
| Tool Type | Turn Ultra hard Inserts |
Product Features
| Family Description | Positive 11 deg relief ang., G class, 80 deg rhombic CBN insert | Country of Origin | Japan |
Shipping Info
Package Weight
0.999
