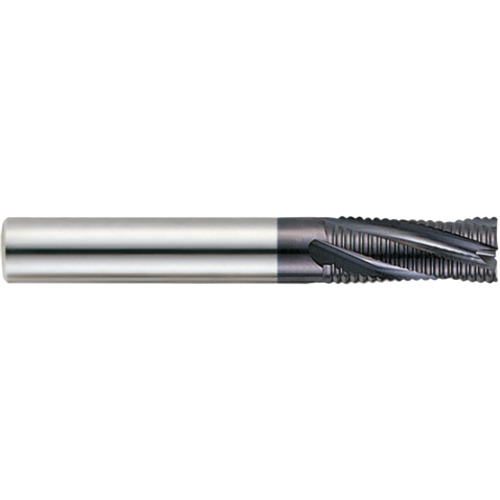

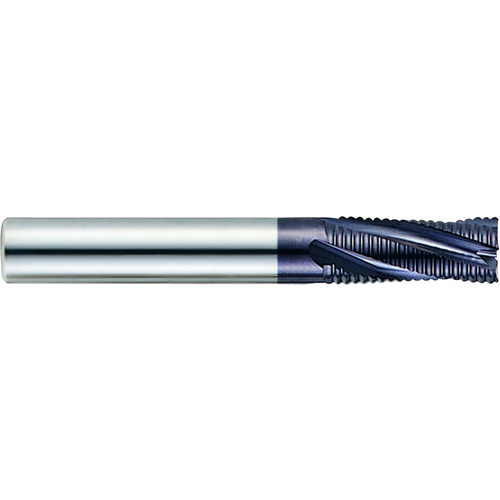

Square End Mill; 20 mm Dia. × 38 mm LOC × 20 mm Shank Dia. × 104 mm OAL ; 4 FL ; Carbide ; ALTiN ; Series EM814
| Cutting Diameter (DC) | 20 mm | Applicable Material | | Steel | |
| Connection Diameter Machine Side (DCONMS) | 20 mm | Corner Chamfer Width (CHW) | 0.6 mm |
| Depth of Cut Maximum (APMX) | 38 mm | Length Group | Long |
| Overall Length (OAL) | 104 mm | Flute Type | Roughing |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.7874″ |
| Coating | AlTiN | Measurement Type | Metric |
| Flute Count (NOF) | 4 | Series/List # | EM814 |
| Flute Helix Angle (FHA) | 20 Degrees | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round | Center Cutting | Yes |
| End Shape | Square |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
4.5
Package Width
1/1/1900 0:00
Package Height
1
Package Weight
0.9135
