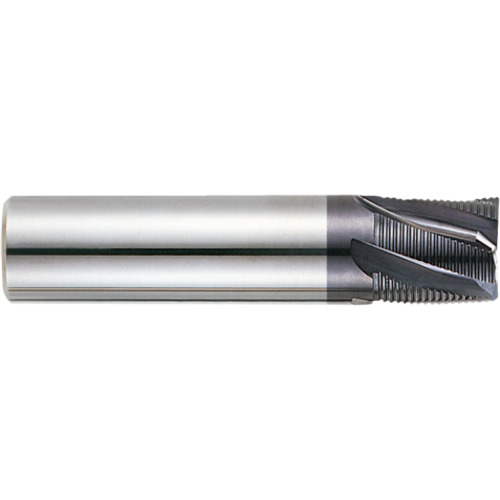

Square End Mill; 6 mm Dia. × 7 mm LOC × 6 mm Shank Dia. × 54 mm OAL ; 3 FL ; Carbide ; ALTiN ; Series EM832
| Cutting Diameter (DC) | 6 mm | Applicable Material | | Steel | |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Corner Chamfer Width (CHW) | 0.38 mm |
| Depth of Cut Maximum (APMX) | 7 mm | Length Group | Long |
| Overall Length (OAL) | 54 mm | Flute Type | Roughing |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.2362″ |
| Coating | AlTiN | Measurement Type | Metric |
| Flute Count (NOF) | 3 | Series/List # | EM832 |
| Flute Helix Angle (FHA) | 20 Degrees | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round | Center Cutting | Yes |
| End Shape | Square |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
2.625
Package Width
1/0/1900 15:00
Package Height
0.625
Package Weight
0.053
