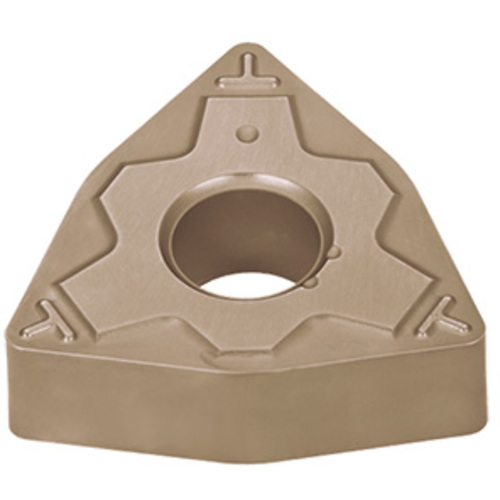

WNMG 330.5E TF T9225
| Applicable Material | | Steel | Stainless Steel | Cast Iron | | Tool Type | Turn Negative Inserts |
| Application | | Inserts | | Min D.O.C. | 0.0039″ |
| Corner Radius (RE) | 0.0079″ | Depth of Cut Maximum (APMX) | 0.0197″ |
| Cutting Edge Length (L) | 0.256″ | Min. Turning Feed (ft(min)) | 0.0012 ″/rev |
| Insert Thickness (S) | 0.187″ | Max. Turning Feed (ft(max)) | 0.0079 ″/rev |
| Inscribed Circle Diameter (IC) | 3/8″ | Chip Breaker Type | TF |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Coating | Ti-compound+Al2O3+TiN | Body Material | Carbide |
| Grade | T9225 | Cutting Edge Effective Length (LE) | 0.118″ |
| Fixing Hole Diameter (D1) | 0.15″ |
Product Features
| Family Description | Negative relief ang., M class, trigon inserts for precision finishing | Country of Origin | Japan |
