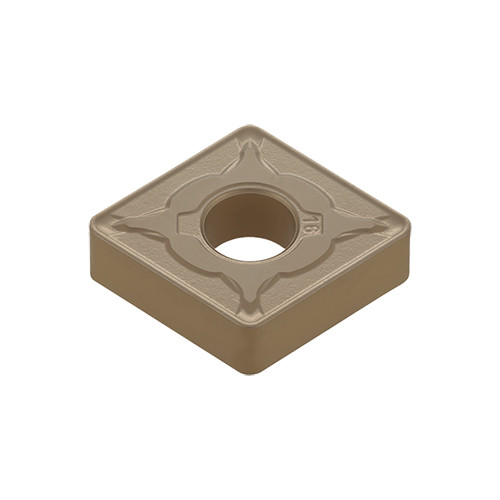

CNMG 866 THS T9235
Turning Insert; CNMG 866 THS T9235 ; 1.016″ Length ; 1″ IC ; 0.094″ Corner Radius ; Neutral
| Applicable Material | | Steel | | Tool Type | Turn Negative Inserts |
| Application | | Inserts | | Min D.O.C. | 0.059″ |
| Corner Radius (RE) | 0.0944″ | Depth of Cut Maximum (APMX) | 0.4331″ |
| Cutting Edge Length (L) | 1.016″ | Min. Turning Feed (ft(min)) | 0.0118 ″/rev |
| Insert Thickness (S) | 3/8″ | Max. Turning Feed (ft(max)) | 0.0393 ″/rev |
| Inscribed Circle Diameter (IC) | 1″ | Cutting Direction (HAND) | Neutral |
| Cutting Edge Material | Carbide | Chip Breaker Type | THS |
| Coating | Ti-compound+Al2O3+TiN | Measurement Type | Inch |
| Grade | T9235 | Body Material | Carbide |
| Fixing Hole Diameter (D1) | 0.359″ | Cutting Edge Effective Length (LE) | 0.824″ |
Product Features
| Family Description | Negative relief ang., M class, 80deg rhombic insert, for medium to heavy cutting | Country of Origin | Japan |
Shipping Info
Package Weight
0.08
