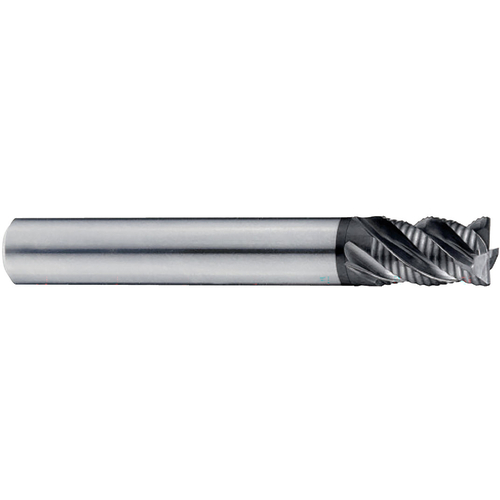

Corner Radius End Mill; 1″ Dia. × 1-3/4″ LOC × 1″ Shank Dia. × 4-1/4″ OAL ; 5 FL ; Carbide ; Y-Coating ; Series G908
| Cutting Diameter (DC) | 1″ | Applicable Material | | Steel | Cast Iron | |
| Connection Diameter Machine Side (DCONMS) | 1″ | Corner Radius (RE) | 0.04″ |
| Depth of Cut Maximum (APMX) | 1-3/4″ | Tool Type | Roughing Corner Radius EndMill |
| Overall Length (OAL) | 4-1/4″ | Length Group | Regular |
| Cutting Edge Material | Carbide | Flute Type | Roughing |
| Coating | AlCrN | Decimal Equivalent | 1″ |
| Flute Count (NOF) | 5 | Measurement Type | Inch |
| Flute Helix Angle (FHA) | Multi Helix | Series/List # | G908 |
| Shank Type | Round | Cutting Direction (HAND) | Right Hand |
| End Shape | Corner Radius | Center Cutting | Yes |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
6.25
Package Width
1.5
Package Height
1.5
Package Weight
1.513
